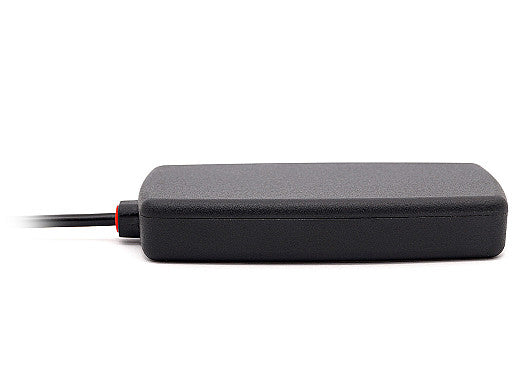

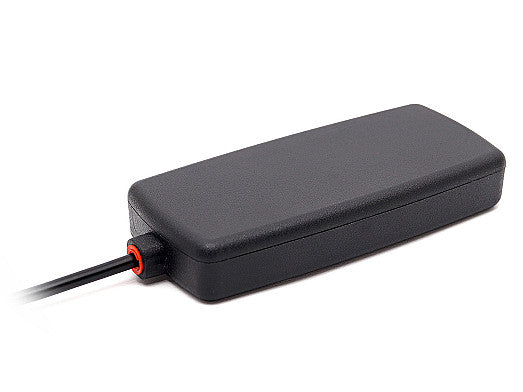

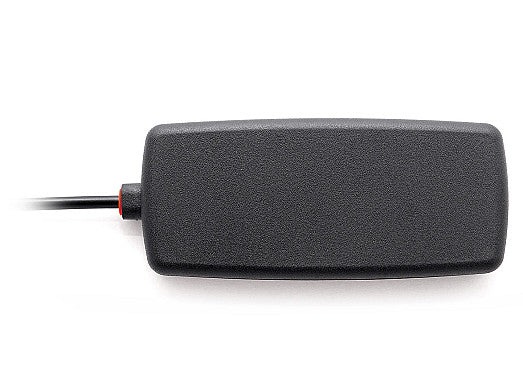

2J4883P 5G adhesive mount Antenna SMA-M 300cm

This ultra-compact, waterproof antenna delivers high-performance 5G connectivity for next-generation devices. Designed for enhanced mobile broadband, low-latency communication, and carrier aggregation, it is ideal for demanding applications in industrial, commercial, and residential environments. The antenna's ground plane independence and low-profile design make it suitable for easy installation on any non-metal surface, ensuring reliable operation even in harsh outdoor conditions.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

Manufactured with high-quality ASA UV stable material (highly durable material) and IP67/ IP69 compliant design with additional sealer protection against external moisture and humidity providing maximum protection in extreme outdoor applications The ground plane independent, small form factor, bar shape dimensions of 83 x 35 x 13.3 mm and high-grade adhesive mounting allow for easy installation on any non–metal surfaces. Cable come with standard SMA-Male connector and 300 cm long LL100 (Low Loss coaxial) cable known for good return loss, insertion loss and amplitude stability.  We offer a wide range of alternative connectors and cables for any customization needs and our highly skilled team is available to guide our customers through any special requirements. Antennas support the health of our environment and manufacture all products without hazardous materials making them fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.0, ~-11.1, ~-8.7, ~-9.9
VSWR: ~2.8:1, ~2.0:1, ~2.2:1, ~2.0:1
Efficiency (%): ~51.8, ~45.5, ~30.7, ~28.0
Peak Gain (dBi): ~3.3, ~2.0, ~0.5, ~0.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
