2J4F01MGF GNSS magnetic mount Antenna SMA-M 300cm IP67

This compact magnetic mount antenna is engineered for high-precision GNSS applications, supporting GPS, QZSS, GLONASS, and Galileo systems. Its robust design ensures reliable performance in automotive, fleet management, and telematics environments. The pre-filtered active design delivers strong signal reception and high gain, making it ideal for both temporary and permanent installations on metal surfaces. The antenna is IP67 certified for protection against dust and water, ensuring durability in harsh outdoor conditions. Typical use cases include navigation, asset tracking, and smart transportation solutions.

Connections

GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

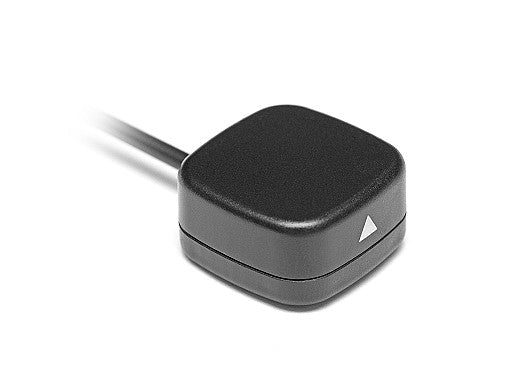

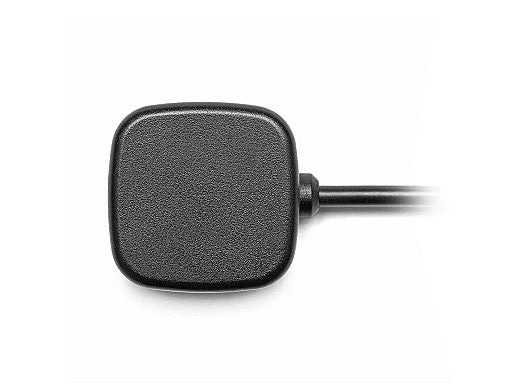

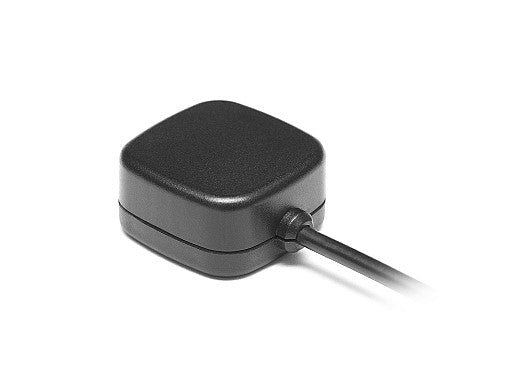

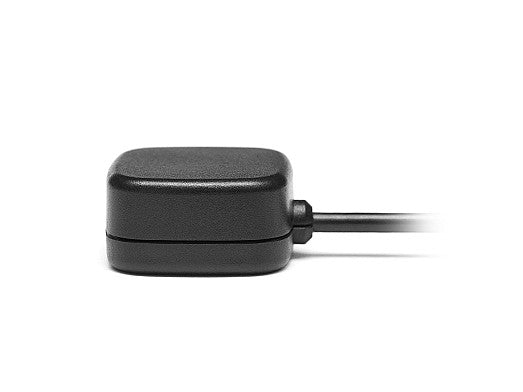

The antenna housing and base are manufactured with high quality ASA material that is designed to operate in temperatures ranging -40C to +85C without any compromise to performance. The small box-shaped antenna housing measures 28 x 25 x 13 mm and comes with a magnetic mount that allows for temporary or long-term installations on metal surfaces such as vehicles, poles, and buildings. This antenna is IP67 certified.

2J4F01MGF includes a standard SMA-Male connector and a 300 cm long flexible LL100 cable tuned for optimal GNSS performance. We offer a large range of alternative connectors and cables to meet any customization needs. It is important to match the right antenna with the job and our expert engineers are available for installation support, any customization needs and antenna selection support.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Active, Pre-Filter
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.3, ~3.8
Impedance (Ohm): 50
Polarisation: RHCP
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.5 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 2
