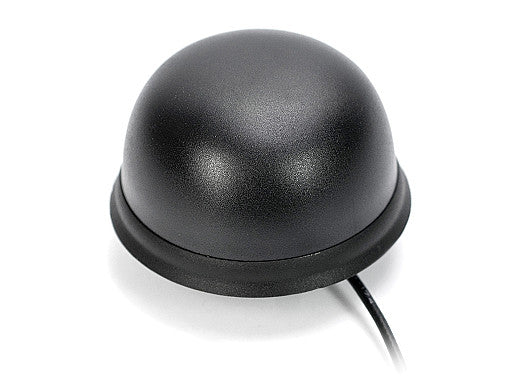

2J6702B Wi-Fi, ISM screw mount Antenna IP67 IP69K

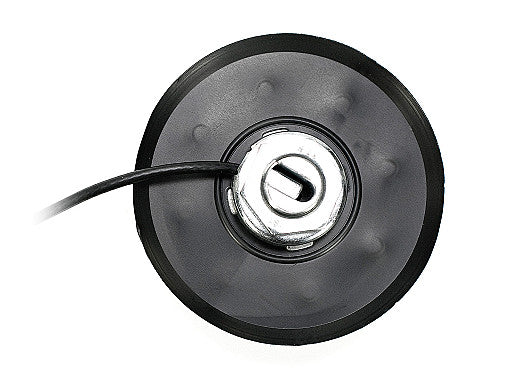

This heavy-duty antenna is engineered for reliable performance in demanding environments, offering ground plane independence and robust protection against water, dust, and impact. Its anti-rotation screw mount design ensures secure installation, making it ideal for smart home, industrial, transportation, and public Wi-Fi applications. The antenna supports Wi-Fi, Bluetooth, ZigBee, and ISM bands, providing versatile connectivity for a wide range of wireless devices and IoT solutions.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~40.6, ~21.8
Peak Gain (dBi): ~1.9, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
