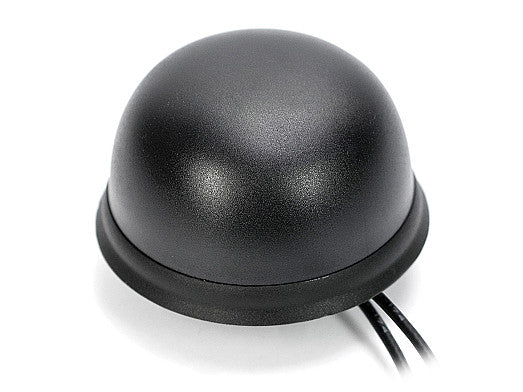

2J6702Ba Wi-Fi, ISM screw mount Antenna 2-in-1 MIMO IP67/IP69K

This heavy-duty antenna is designed for robust wireless connectivity in demanding environments. Featuring a 2-in-1 MIMO configuration, it supports Wi-Fi, ISM, Bluetooth, and ZigBee standards, making it ideal for applications such as smart homes, smart cities, entertainment systems, healthcare, transportation, and industrial automation. The ground plane dependent design ensures optimal performance, while the anti-rotation screw mount provides secure installation. The antenna is customizable for cable and connector options and is protected with IP67 and IP69K ratings for use in harsh conditions.

Connections

2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External

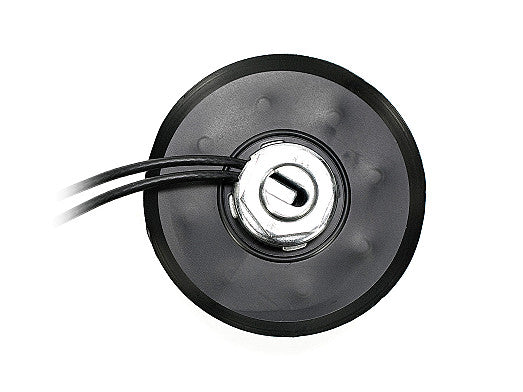

Mounting: Screw Mount
Type: Combination

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~40.6, ~21.8
Peak Gain (dBi): ~1.9, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~40.9, ~19.5
Peak Gain (dBi): ~1.8, ~1.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
