2J6983MP 5G magnetic/adhesive mount Antenna Phoenix SMA-M 300cm IP67/IP69

This low-profile, ultra-wideband antenna is engineered for reliable 5G NR and cellular connectivity across a wide frequency range. With high peak gain and omni-directional coverage, it is ideal for demanding industrial, commercial, and residential applications that require robust data throughput and consistent performance. The waterproof and dust-resistant housing ensures durability in harsh environments, while the magnetic and adhesive mounting options provide flexible installation for both permanent and temporary setups. Typical use cases include mobile networks, telecommunications, smart cities, automation, and broadband communications.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

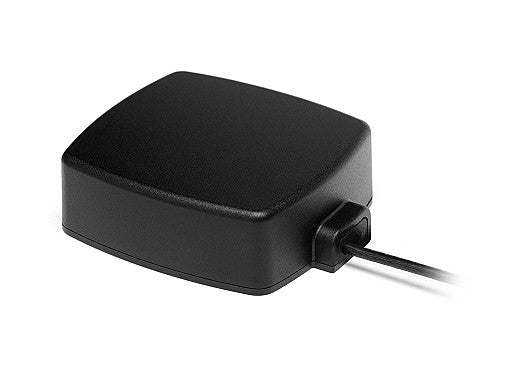

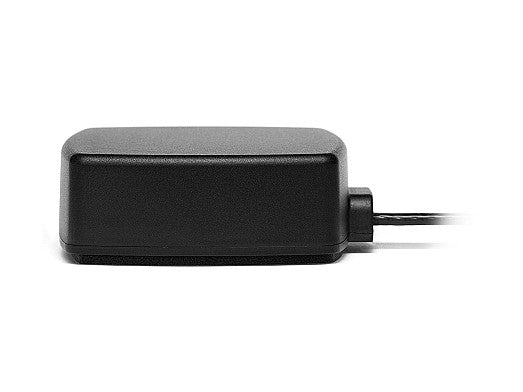

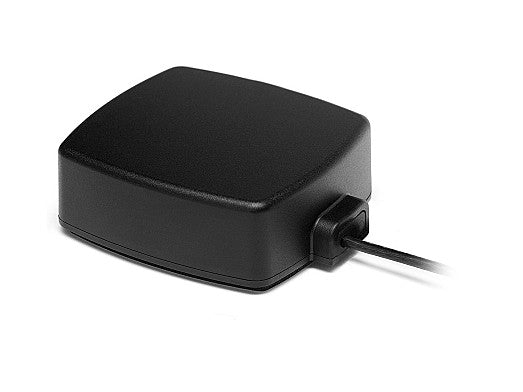

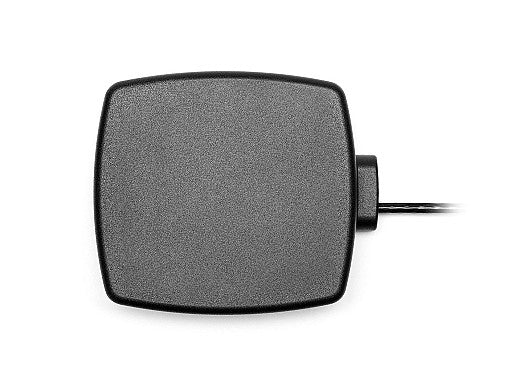

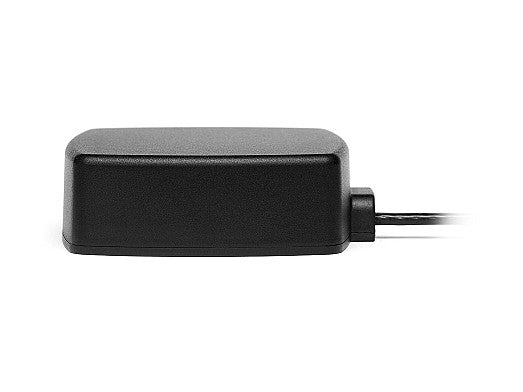

The antenna is enclosed in a waterproof and dust-resistant ASA UV-stable housing that measures 89 × 76 × 27/30 mm, protecting it in extreme environmental conditions.

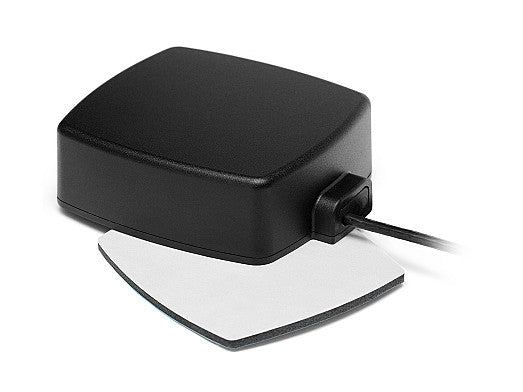

With a user-friendly peel-n-stick adhesive magnetic mount, it can be effortlessly installed on any metal surface, such as vehicles or metal buildings. No additional grounding is required, making the installation process simple. The adhesive and magnetic mount is robust enough for long-term installations, yet also provides an easy option for temporary applications and relocation.
The antenna is delivered with a standard SMA-Male connector and a 300 cm long D302 cable (custom options available). This antenna is IP67 and IP69 certified.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.0, ~-11.2, ~-7.1, ~-6.4
VSWR: ~3.1:1, ~2.1:1, ~3.1:1, ~3.0:1
Efficiency (%): ~50.2, ~56.3, ~30.4, ~25.1
Peak Gain (dBi): ~2.1, ~6.3, ~3.7, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
