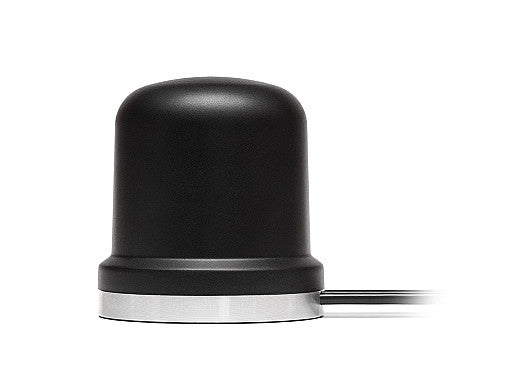

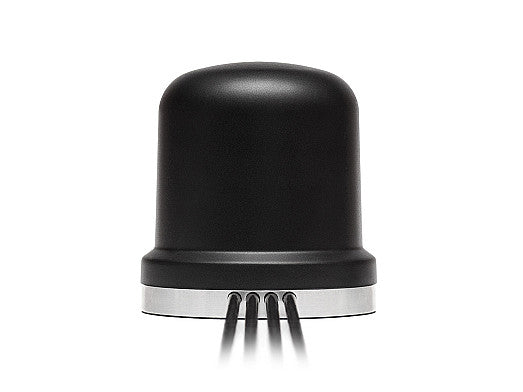

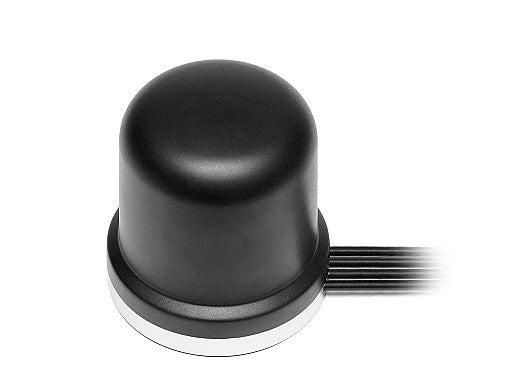

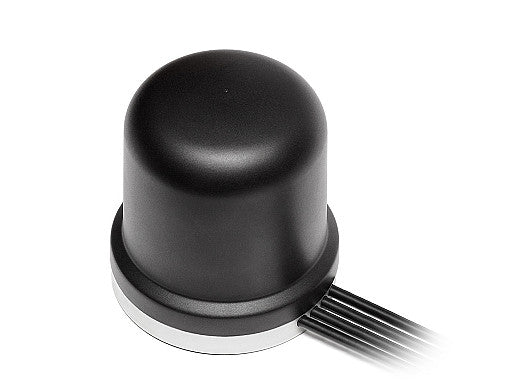

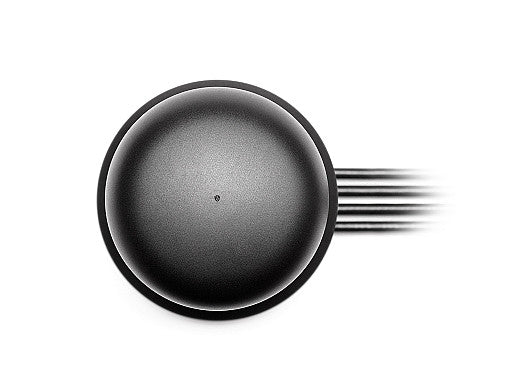

2J7083Mc 5G magnetic mount Antenna Medusa SMA-M 300cm IP67/IP69

This ultra-wideband 4-in-1 magnetic mount antenna delivers robust 5G MIMO connectivity for demanding outdoor and mobile applications. Designed for high performance and reliability, it supports global 5G, 4G, 3G, and 2G networks, ensuring uninterrupted broadband access and low-latency communication. Its compact, heavy-duty construction and IP67/IP69/IK09 ratings make it ideal for critical communications, public safety, industrial, and IoT deployments. The omni-directional design maximizes signal strength and throughput, making it suitable for base stations, routers, and high-traffic MIMO devices.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

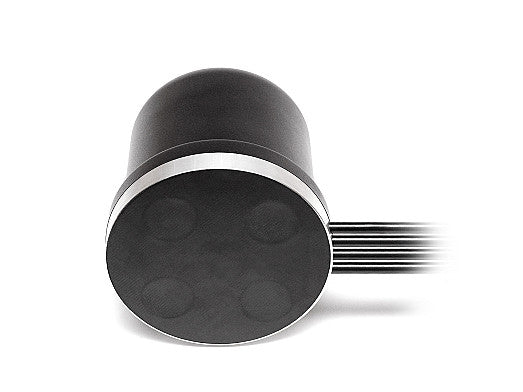

The easy-to-install heavy-duty antenna offers durability and efficiency. The magnetic mount feature facilitates quick on-and-off installations on any metal surfaces such as vehicles, metal buildings and steel towers. This ground plane independent antenna measures only 96 x 102 mm. The cables are low loss LL195 cables that measure 300 cm in length and are fed through SMA-Male connectors for a secure connection. These cables are highly preferred for high-frequency applications up to 6 GHz.
The fully IP67 and IP69 rated antenna is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This antenna is manufactured with both REACH and RoHS compliance along with IK09 ratings for enhanced anti-vandal security.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-4.7, ~-9.3, ~-9.8, ~-7.0
VSWR: ~4.5:1, ~2.4:1, ~2.2:1, ~2.7:1
Efficiency (%): ~30.0, ~41.2, ~45.9, ~33.2
Peak Gain (dBi): ~-1.2, ~3.6, ~5.0, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-4.7, ~-9.3, ~-10.5, ~-7.6
VSWR: ~4.4:1, ~2.3:1, ~2.0:1, ~2.6:1
Efficiency (%): ~32.8, ~43.3, ~43.0, ~34.5
Peak Gain (dBi): ~-1.5, ~3.6, ~4.5, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-4.5, ~-9.2, ~-10.2, ~-7.4
VSWR: ~4.6:1, ~2.4:1, ~2.1:1, ~2.6:1
Efficiency (%): ~32.4, ~41.9, ~44.9, ~33.6
Peak Gain (dBi): ~-1.6, ~3.7, ~5.1, ~4.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-4.8, ~-9.7, ~-10.3, ~-7.4
VSWR: ~4.3:1, ~2.3:1, ~2.1:1, ~2.7:1
Efficiency (%): ~30.8, ~45.6, ~40.9, ~35.6
Peak Gain (dBi): ~-1.3, ~3.9, ~4.3, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
