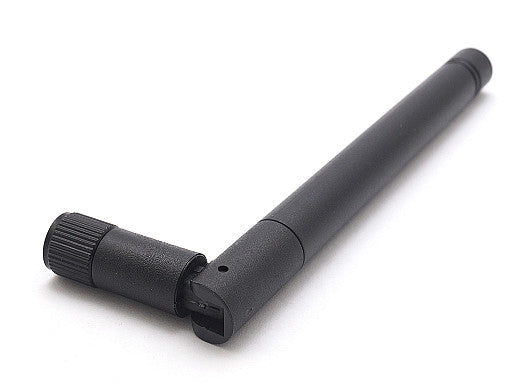

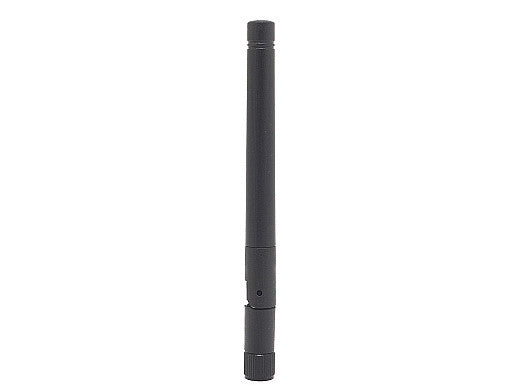

2JW0302-C442B Wi-Fi 6E/7, ISM connector mount Antenna

This high-performance antenna is designed for tri-band Wi-Fi 6E and Wi-Fi 7, as well as ISM applications. Its ground plane independent dipole design ensures reliable connectivity and high efficiency across 2.4, 5.0, and 6.0 GHz bands. The antenna is ideal for demanding environments such as smart homes, entertainment systems, medical devices, transportation, and IoT applications, where robust wireless performance is essential. The hinged connector allows for flexible installation and optimal positioning in a variety of external device setups.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~3.0:1, ~2.0:1
Efficiency (%): ~71.2, ~55.5, ~65.1
Peak Gain (dBi): ~4.8, ~7.1, ~5.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
