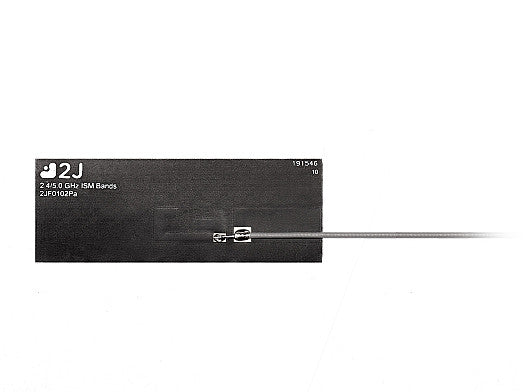

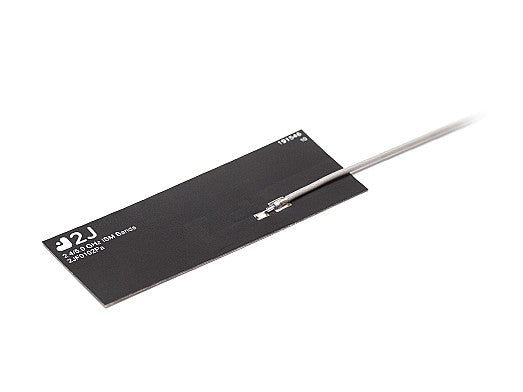

2JF0102Pa Wi-Fi 6E/7, ISM flexible ultra-thin PCB adhesive Antenna

This ultra-thin, flexible PCB adhesive antenna is designed for high-performance wireless connectivity across Wi-Fi 6E, Wi-Fi 7, and ISM bands. Its ground plane independence and self-adhesive design make it ideal for seamless integration into a wide range of internal applications, including consumer electronics, robotics, drones, smart home devices, and more. The antenna delivers robust signal quality and high peak gain, supporting demanding throughput, sensitivity, and reliability requirements for modern wireless systems.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: Internal
LPWAN & IoT Communication: SigFox, LoRa
Mounting: Adhesive Mount Flexible
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.2:1, ~1.5:1, ~2.2:1
Efficiency (%): ~71.3, ~68.3, ~59.0
Peak Gain (dBi): ~2.0, ~4.7, ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
