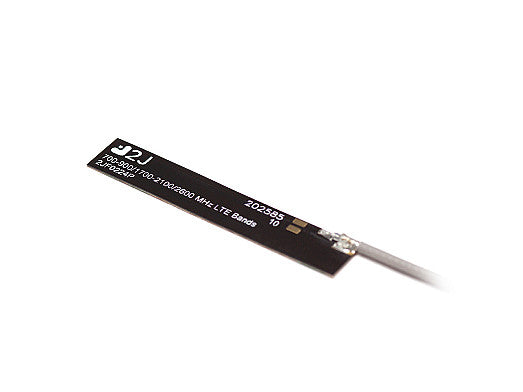

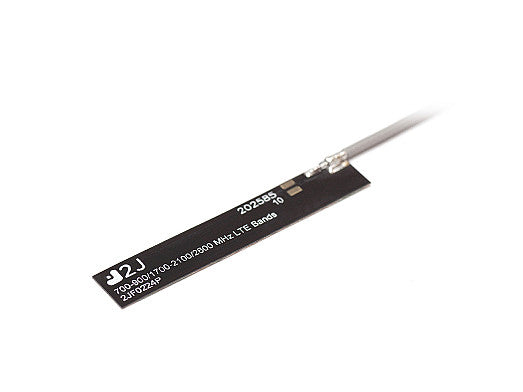

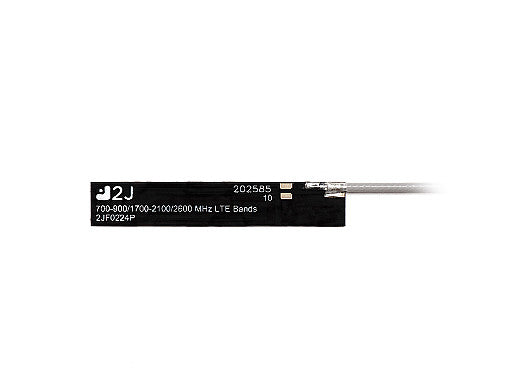

2JF0224P 4G/LTE Antenna adhesive mount flexible U.FL 15cm

This ultra-thin, flexible adhesive mount antenna is designed for seamless integration into compact devices requiring reliable 4G/LTE, 3G, and 2G connectivity. Its omnidirectional radiation pattern ensures 360° coverage, making it ideal for applications such as consumer electronics, robotics, wearables, asset tracking, and IoT solutions. The ground plane independent design allows for versatile placement, while the self-adhesive backing simplifies installation on various surfaces. High performance and a small form factor make this antenna suitable for space-constrained environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: U.FL-Male
• Cable Length: 15cm
• Cable Type: MC137

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~4.0:1, ~3.9:1, ~3.3:1
Efficiency (%): ~40.0, ~46.1, ~53.8
Peak Gain (dBi): ~0.1, ~1.4, ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
