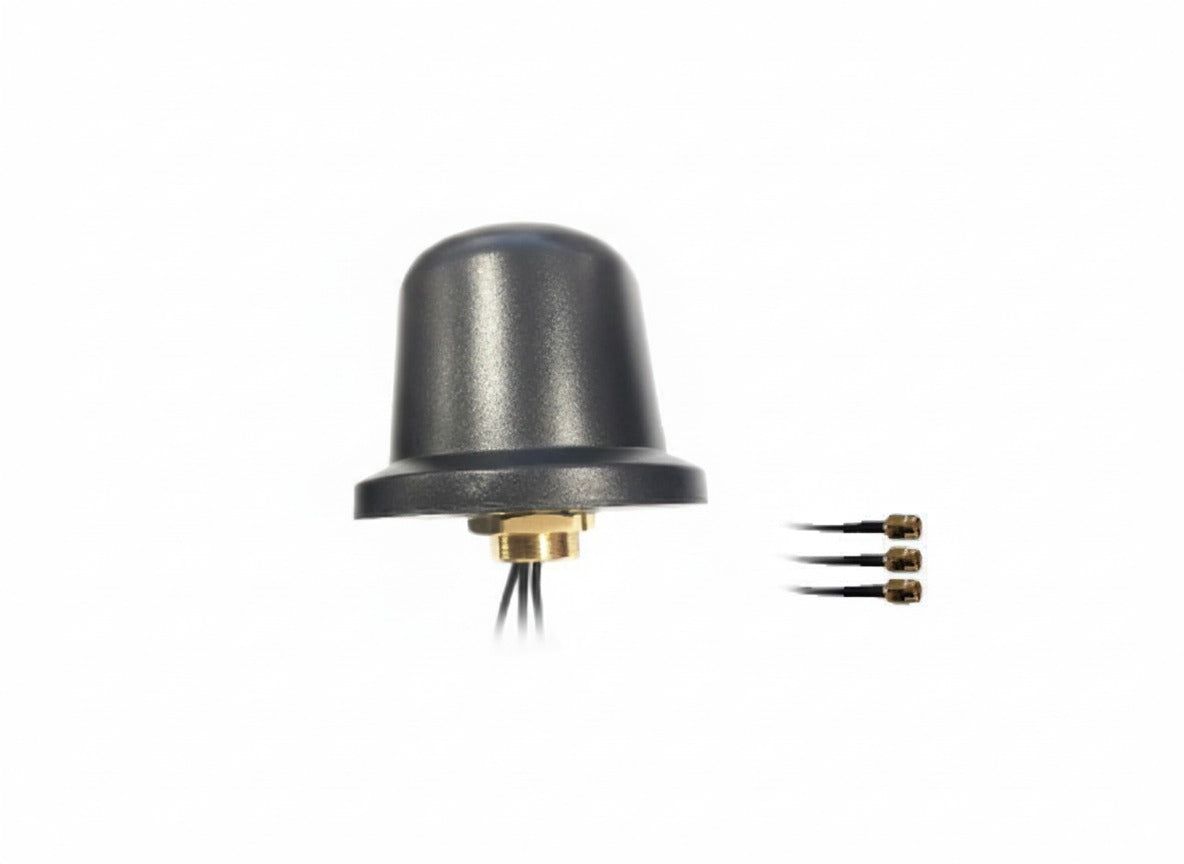

SW20031EB56-1 3-in-1 Multi-Band 4G WiFi+GNSS IoT Antenna, IP67 Rated SMA-M 300cm

Product Overview:

The SW20031EB56-1 is a versatile combination antenna designed for both cellular and WiFi applications. With its multi-band support and robust construction, it is ideal for automotive and industrial use.

Key Features:
- Supports 4G, 3G, 2G, WiFi, and GNSS (GPS/GLONASS/GALILEO/BEIDOU)
- Lock screw mounting for secure installation
- IP67-rated for water and dust resistance
- Wide frequency range for comprehensive coverage
- Reliable performance in extreme conditions

Technical Specifications:
- Mounting Type: Lock Screw
- Connector Type: SMA-M
- Cable Length: 3000 mm
- Cable Type: RG174
- Dimensions: 99.96 (?) x 105.8 (H) mm
- Ingress Protection: IP67
- Operating Temperature: -40°C to +85°C
- Frequency Range:
- Cable 1: 690~960 MHz / 1710~2690 MHz
- Cable 2: 2400~2500 MHz / 5100~5900 MHz
- Cable 3: 1559 MHz / 1575.42 MHz / 1602 MHz
- Colour: Black
- Peak Gain: -1.3~1.6 dBi (Cellular) / 3.1~4.4 dBi (WiFi) / 2.7~5.2 dBi (GNSS)
- Active Gain: 28 dB @ 3.6 V (GNSS)
- Impedance: 50 Ohm
- Polarization: Linear (Cellular & WiFi) / RHCP (GNSS)
- Max Input Power: 5W

Installation Notes:

Install the antenna using the lock screw for a secure attachment. Ensure the antenna is placed in a location that is free from physical obstructions, providing optimal conditions for both cellular and GNSS signal reception.

Frequently Asked Questions:

Q1: What networks does this antenna support?
A1: This antenna supports 4G, 3G, 2G cellular networks, WiFi, and GNSS systems including GPS, GLONASS, GALILEO, and BEIDOU.

Q2: Is this antenna suitable for outdoor use?
A2: Yes, with its IP67 rating, this antenna is well-suited for outdoor installations.

Inquire for customization options eg connector, cable length, and bulk quantity.

Support and Documentation
Download: Datasheet
