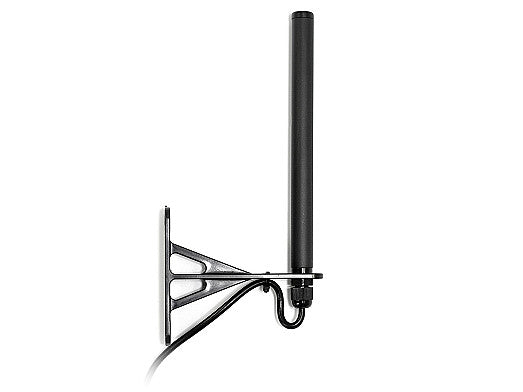

2J2102K-B07H Wi-Fi, ISM wall mount Antenna

This high-performance dual-band antenna is designed for reliable Wi-Fi and ISM connectivity in a wide range of applications. Its ground plane independent design ensures consistent performance regardless of mounting surface, making it ideal for smart home, industrial, and commercial environments. The included wall mount bracket allows for secure and flexible installation, while the antenna's robust construction supports demanding use cases such as entertainment, smart cities, healthcare, transportation, and more.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Location: External
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.5:1, ~1.2:1
Efficiency (%): ~46.3, ~25.6
Peak Gain (dBi): ~1.5, ~1.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
