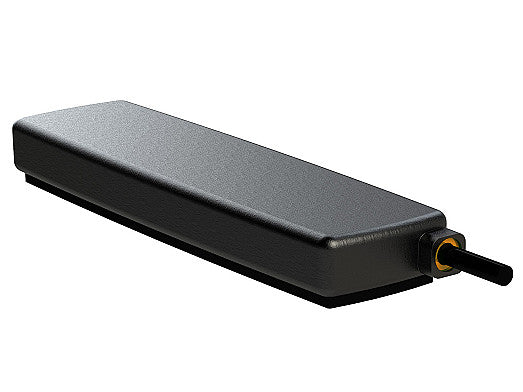

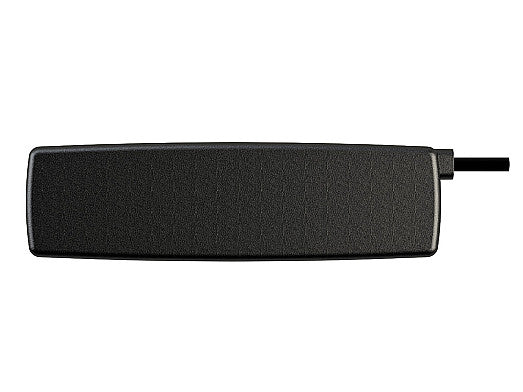

2J4983P 5G adhesive mount Antenna SMA-M 300cm

This low-profile adhesive mount antenna delivers high-performance connectivity for 5G, 4G LTE, 3G, 2G, and CDMA networks across a wide frequency range (617–5925 MHz). Its ground plane independent design ensures reliable omni-directional coverage and easy installation with peel-and-stick application. Ideal for automotive, industrial IoT, telematics, smart home, and commercial deployments, it supports high-speed data, MIMO networks, and future-ready NB-IoT and CAT-M technologies.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

With overall dimensions of only 150.5 x 42 x 15.3 mm, high-quality adhesive tape and ASA UV stable housing, the antenna can be installed on any surfaces found in the most extreme outdoor environments without any risk of failure. The antenna features a standard SMA-Male connector and a 300 cm long LL195 cable. A wide range of alternative connectors and cables are also available to meet unique design requirements. As an added measure, this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process. All products are manufactured without hazardous materials, making them fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, CAT-M
Mounting: Adhesive Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-8.2, ~-12.3, ~-8.6, ~-7.6
VSWR: ~2.8:1, ~1.8:1, ~2.3:1, ~2.8:1
Efficiency (%): ~55.9, ~60.4, ~45.8, ~25.8
Peak Gain (dBi): ~2.2, ~3.5, ~3.0, ~0.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
