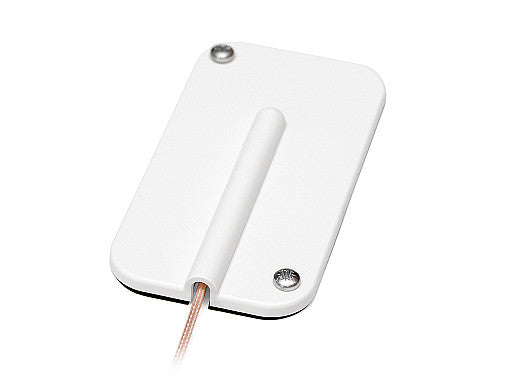

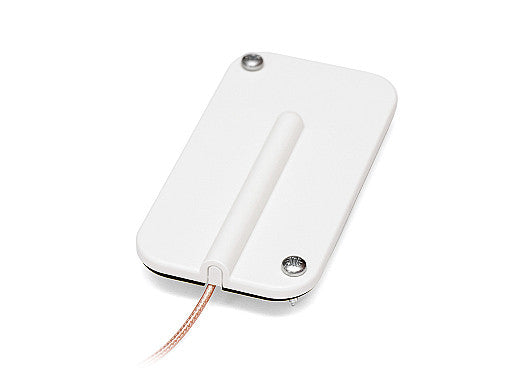

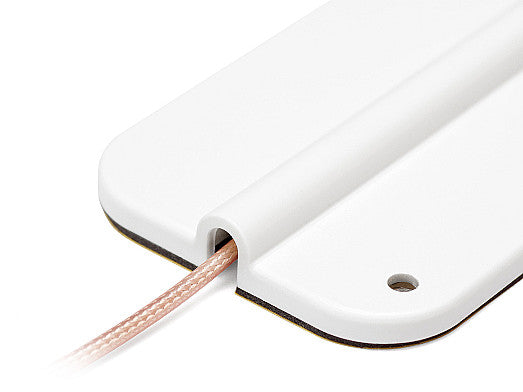

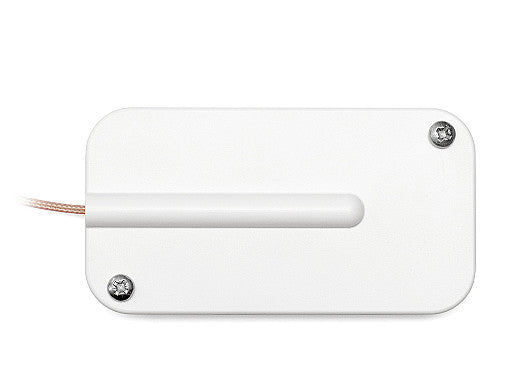

2J5410HP TETRA, LPWA, UHF Antenna adhesive/wall mount customizable

This high-gain antenna is designed for reliable TETRA, LPWA, and UHF communications, making it ideal for mission-critical applications such as public safety, defense, asset tracking, and first responder fleets. Its ground plane independent design ensures consistent performance, while the low-profile form factor allows for discreet installation. The antenna is customizable to meet specific cable and connector requirements, providing flexibility for a wide range of deployment scenarios.

Connections

380-470MHz/LPWA/TETRA/UHF

Technical Specifications

Operating Temperature: -40 °C to +85 °C

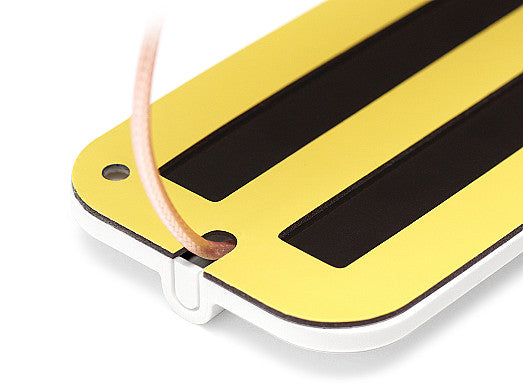

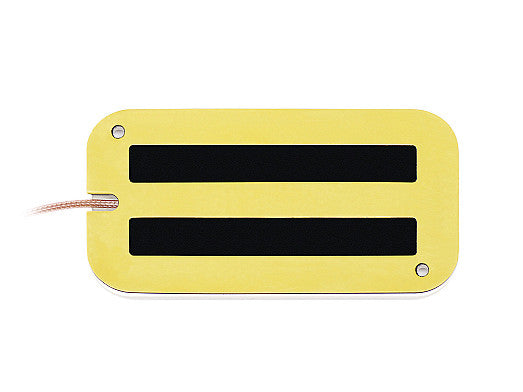

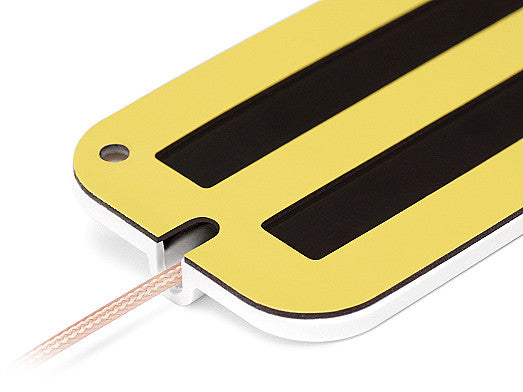

Mounting: Adhesive Mount, Wall Mount, Wall/Adhesive Mount
Location: External
Type: Single

Connection 1 - TETRA

Standards: TETRA
Frequency: 380-470 MHz
VSWR: ~2:1
Efficiency (%): ~45
Peak Gain (dBi): ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
