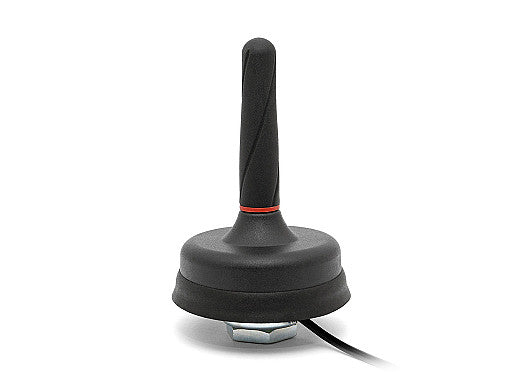

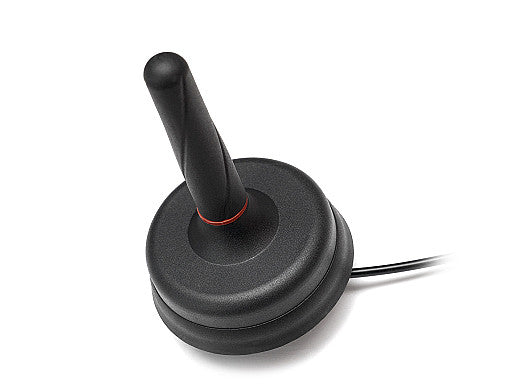

2J7583B 5G screw mount Antenna Joystick SMA-M IP67 IP69

This high-performance screw mount antenna is engineered for next-generation 5G NR applications, delivering ultra-wideband coverage across sub-6 GHz frequencies (617–5925 MHz). Its robust, waterproof housing (IP67 and IP69) ensures reliable operation in harsh outdoor environments, making it ideal for transportation, telematics, gateways, routers, smart metering, and remote monitoring. The antenna provides full backward compatibility with 4G LTE, 3G, and 2G networks, supporting a wide range of cellular standards for global connectivity. Its omnidirectional radiation pattern ensures consistent 360-degree signal quality, while the compact, low-profile design allows for easy integration into various devices and platforms.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male

Installation / Environmental

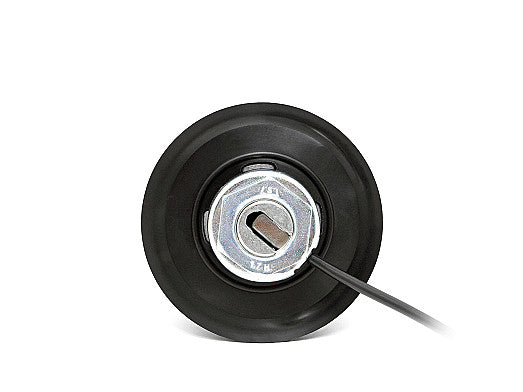

The 2J7583B 5GNR antenna measures Ø 60 × 81 mm in size, comes with a screw mount option and is ground plane dependent. The housing is manufactured from durable ASA material (available in black) and can withstand temperatures ranging from -40C to +85C. Installation is made simple using the SMA-Male-connector. 2J7583B is manufactured without any hazardous materials and is both REACH and RoHS compliant. The antenna is waterproof with an IP67 rating and an additional IP69 rating for waterproof resistance against high-pressure water jets. Fully customizable options with a large selection of connector types, cable lengths, and cable types.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-8.4, ~-13.6, ~-11.7, ~-8.1
VSWR: ~3.1:1, ~1.7:1, ~1.8:1, ~2.5:1
Efficiency (%): ~48.8, ~59.8, ~33.3, ~23.7
Peak Gain (dBi): ~1.1, ~3.6, ~1.9, ~1.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
