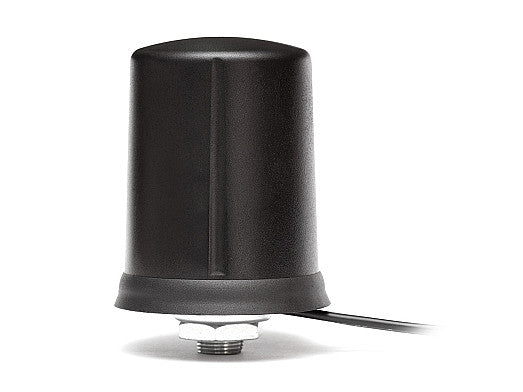

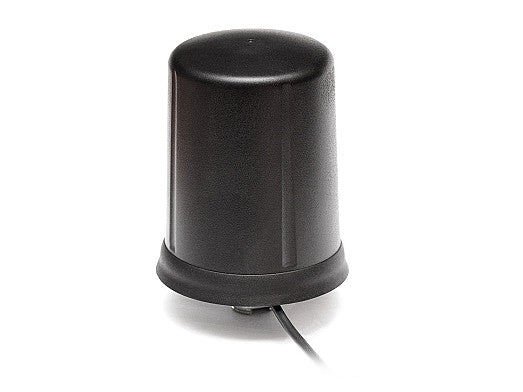

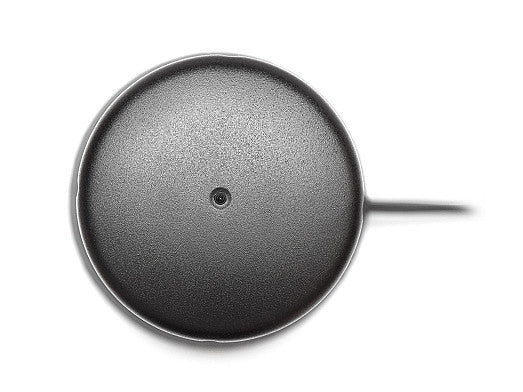

2J7715B-433 ISM screw mount Antenna IP67/IP69/IK09

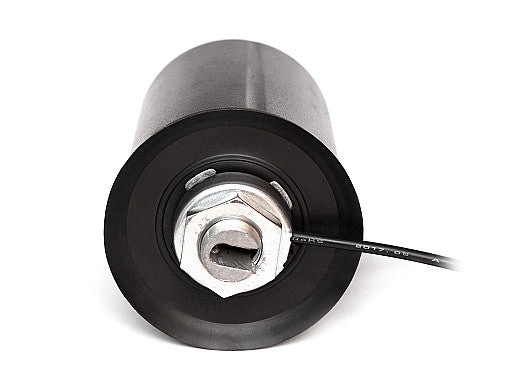

This high-performance antenna is designed for reliable operation in the 433 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust screw mount design ensures secure installation and long-term durability, even in demanding environments. The antenna is ground plane dependent and features anti-rotation mounting for added stability. With certifications for IP67, IP69, and IK09, it offers excellent protection against water, dust, and mechanical impacts, making it suitable for both indoor and outdoor use.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.1:1
Efficiency (%): ~40.4
Peak Gain (dBi): ~0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
