2J7A83Ba 5G screw mount Antenna Medusa SMA-M 300cm IP67/IP69/IK09

This heavy-duty antenna is engineered for robust 5G MIMO connectivity, supporting fast mobile broadband and reliable worldwide coverage across 5G, 4G/LTE, 3G, and 2G bands. Its ground plane independent design and omni-directional radiation pattern ensure consistent performance in demanding environments. The antenna is ideal for public safety, transportation, industrial IoT, fleet management, and critical communications, offering high efficiency and peak gain up to 3.8 dBi. The durable ASA UV-stable housing with anti-rotation screw mount allows for both indoor and outdoor installations, providing long-lasting protection against dust, water, and vandalism.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

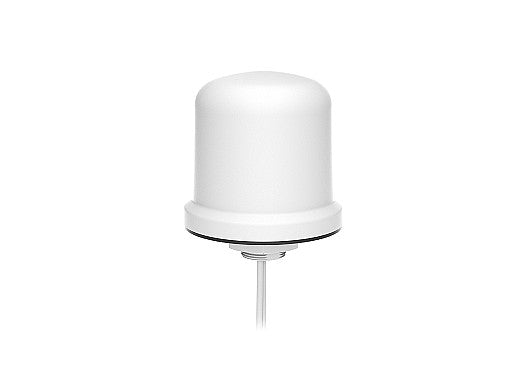

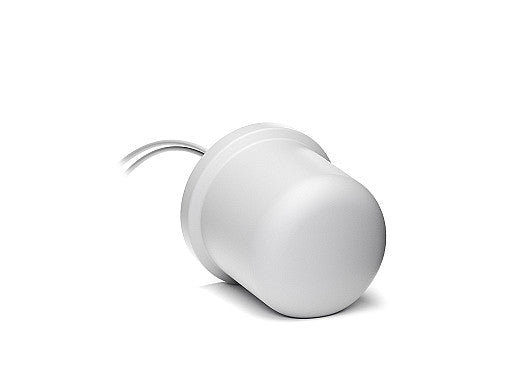

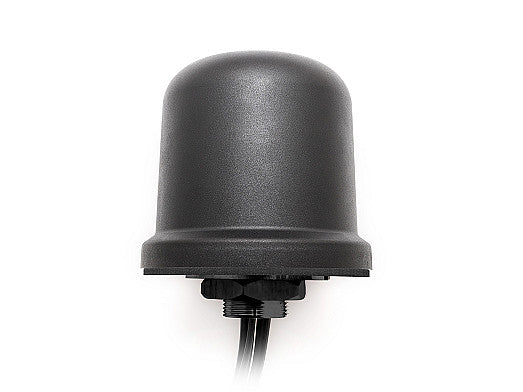

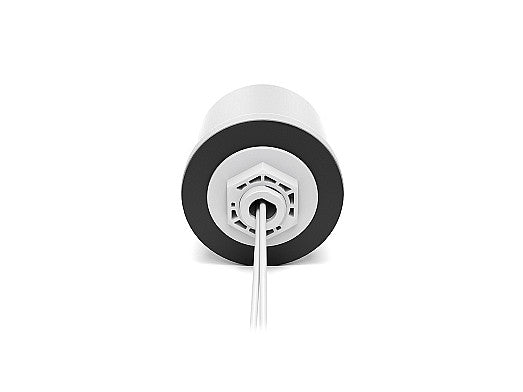

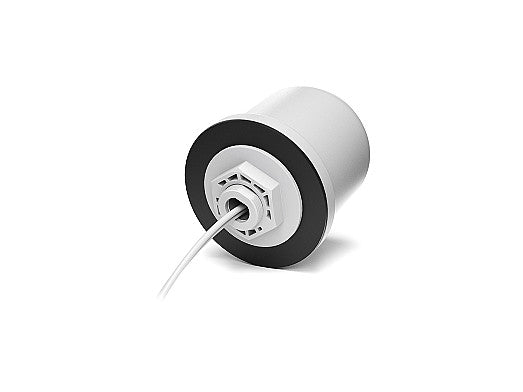

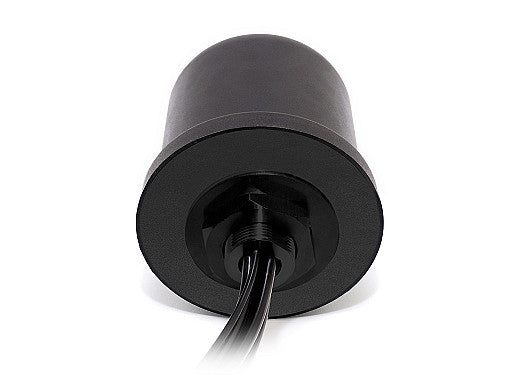

Measuring only Ø 96 x H 90 mm, the antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties and a plastic antenna base. This solution comes with a screw mount antenna that can be installed indoors or outdoors. It comes with an anti-rotation mounting technology.
Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security with high impact resistance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR: ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%): ~44.1, ~56.3, ~44.0, ~42.4
Peak Gain (dBi): ~1.4, ~3.6, ~3.4, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.7, ~-12.4, ~-11.9, ~-11.9
VSWR: ~2.7:1, ~1.7:1, ~2.0:1, ~1.8:1
Efficiency (%): ~44.6, ~54.8, ~43.0, ~47.1
Peak Gain (dBi): ~1.5, ~3.6, ~3.5, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
