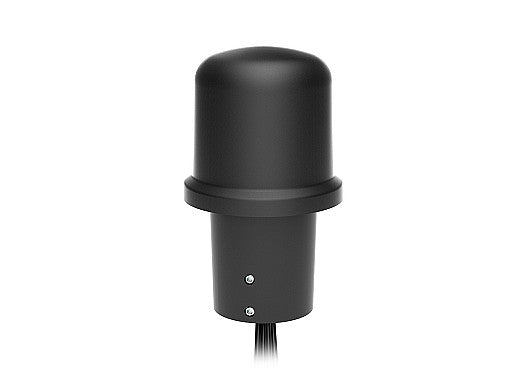

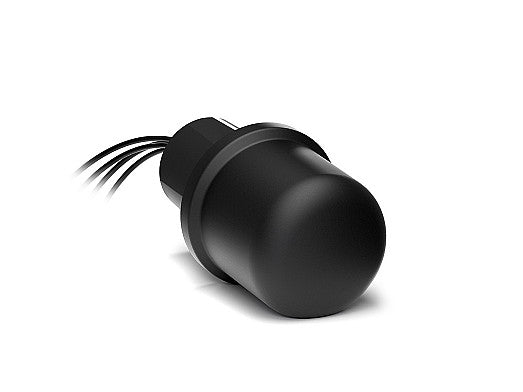

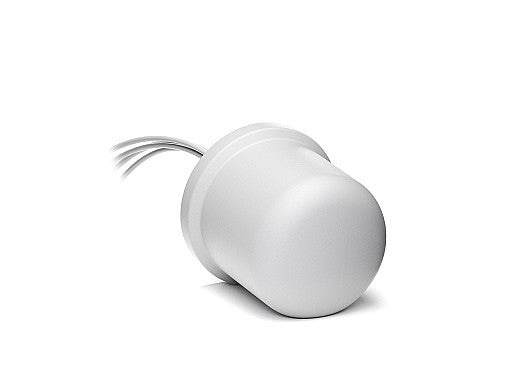

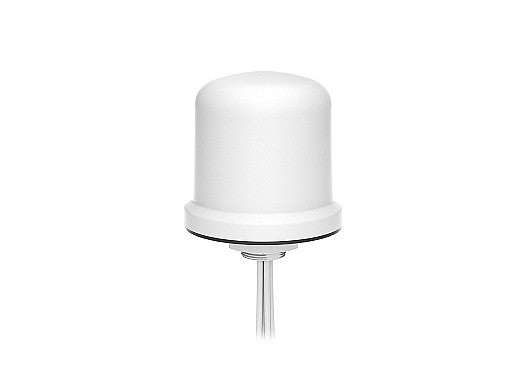

2J7A83JBc-B16J 5G screw mount, pole mount Antenna 4-in-1 MIMO SMA-M 300cm IP67/IP69/IK09

This heavy-duty 4-in-1 antenna is engineered for robust and reliable 5G MIMO connectivity across global networks. Supporting 5G NR, 4G LTE, 3G, and 2G bands, it ensures high-speed, low-latency broadband for mission-critical and industrial applications. The antenna's rugged ASA housing, ground plane independence, and versatile mounting options make it ideal for demanding environments such as emergency services, transportation, IoT, and fleet management. Its omni-directional radiation pattern and linear polarization maximize signal strength and coverage, while the included pole mount bracket and anti-rotation features simplify installation and enhance durability.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

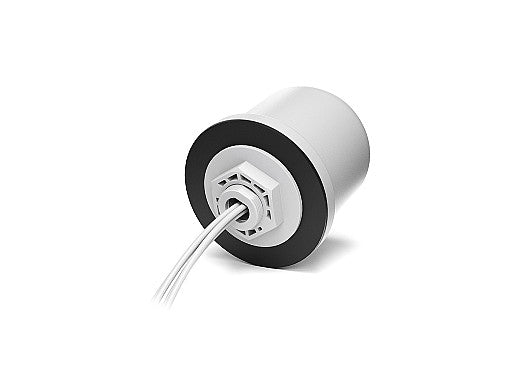

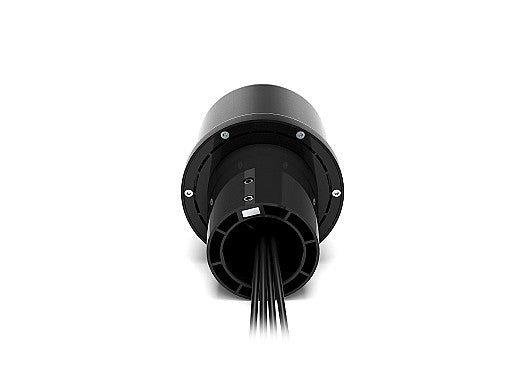

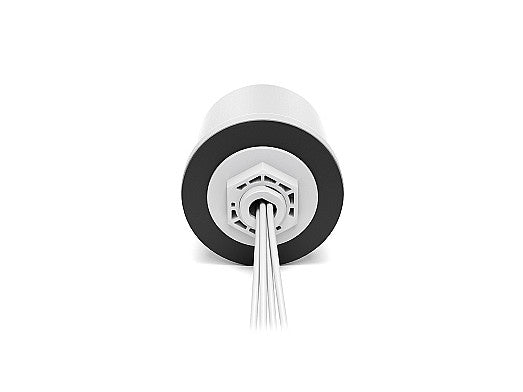

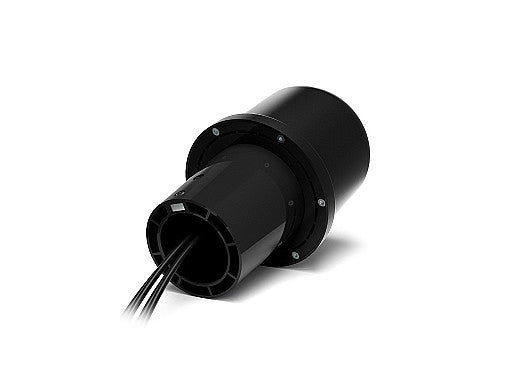

The 2J7A83JBc-B16J is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and pole mount bracket allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount, Pole Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.4, ~-12.5, ~-11.4, ~-12.2
VSWR: ~3.6:1, ~1.9:1, ~1.9:1, ~1.8:1
Efficiency (%): ~30.0, ~46.5, ~42.1, ~42.0
Peak Gain (dBi): ~0.1, ~3.9, ~3.4, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.8, ~-13.2, ~-12.5, ~-12.8
VSWR: ~3.4:1, ~1.8:1, ~1.8:1, ~1.7:1
Efficiency (%): ~31.1, ~47.6, ~40.9, ~41.0
Peak Gain (dBi): ~-1.3, ~4.0, ~3.0, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.0, ~-12.3, ~-11.9, ~-11.8
VSWR: ~4.1:1, ~1.9:1, ~1.9:1, ~1.9:1
Efficiency (%): ~30.0, ~47.0, ~41.9, ~44.4
Peak Gain (dBi): ~-0.7, ~3.8, ~3.6, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.5, ~-12.7, ~-11.8, ~-12.7
VSWR: ~3.7:1, ~1.9:1, ~1.9:1, ~1.9:1
Efficiency (%): ~30.6, ~46.3, ~42.1, ~42.1
Peak Gain (dBi): ~-0.9, ~3.6, ~3.3, ~4.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
