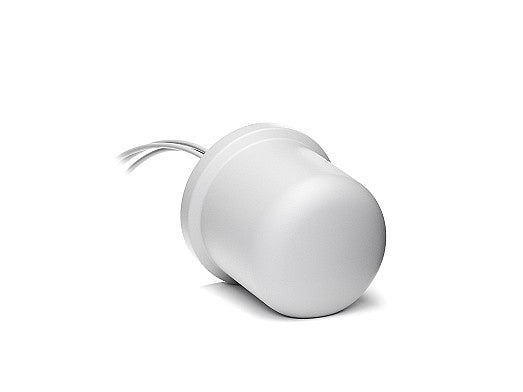

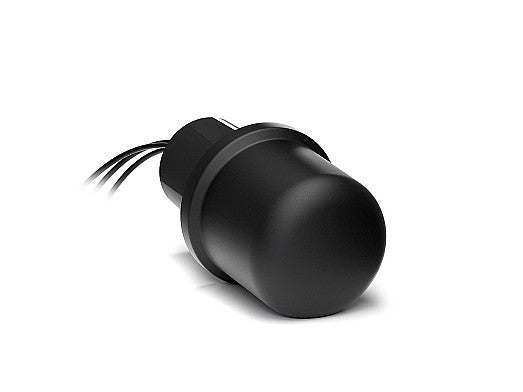

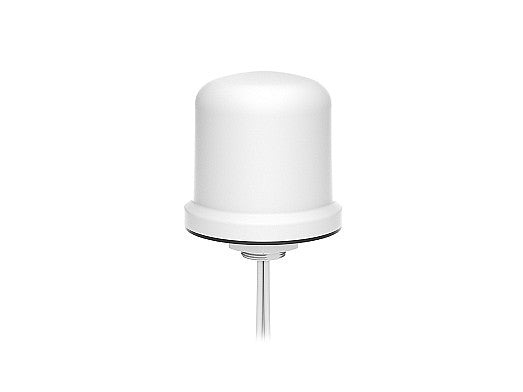

2J7A84JBGFa-B16J 5G, GNSS screw/pole mount Antenna 3-in-1 MIMO SMA-M 300cm IP69

This heavy-duty 3-in-1 antenna is engineered for robust performance in demanding environments, combining dual 5G MIMO connectivity with high-precision GNSS for reliable, high-speed data and accurate positioning. Its ultra-wideband coverage supports 5G, 4G, 3G, and 2G networks, making it ideal for mission-critical applications such as emergency services, fleet management, industrial IoT, and asset tracking. The rugged housing ensures durability, while ground plane independence and versatile mounting options simplify installation on poles or flat surfaces. The antenna is protected against dust, water, and vandalism, making it suitable for both indoor and outdoor deployments.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

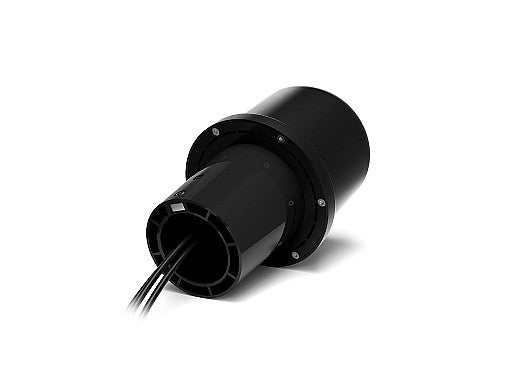

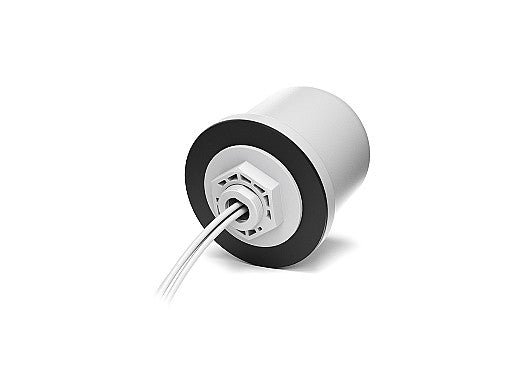

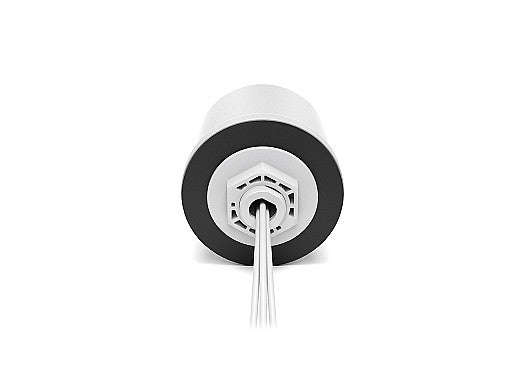

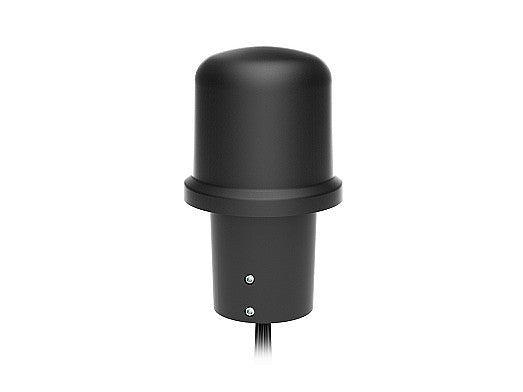

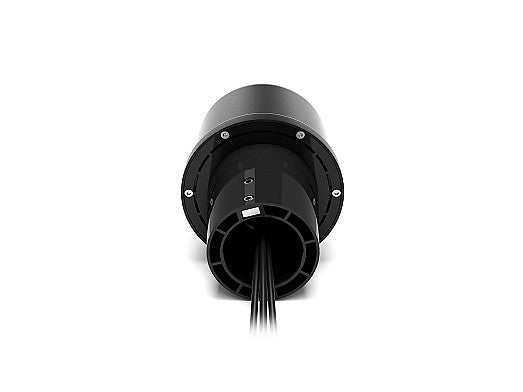

The antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and pole mount and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount, Pole Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR: ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%): ~44.1, ~56.3, ~44.0, ~42.4
Peak Gain (dBi): ~1.4, ~3.6, ~3.4, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.7, ~-12.4, ~-11.9, ~-11.9
VSWR: ~2.7:1, ~1.7:1, ~2.0:1, ~1.8:1
Efficiency (%): ~44.6, ~54.8, ~43.0, ~47.1
Peak Gain (dBi): ~1.5, ~3.6, ~3.5, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1610
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
