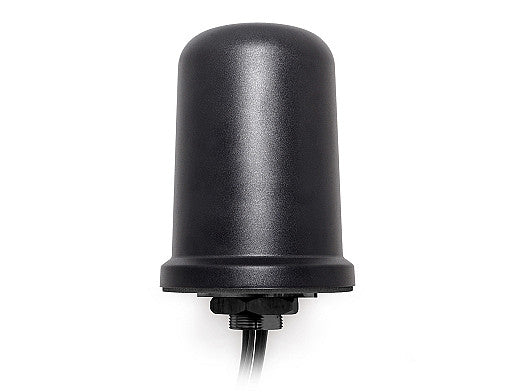

2J7B83Bc 5G screw mount Antenna 4-in-1 MIMO SMA-M 300cm IP67/IP69

This heavy-duty 4-in-1 antenna is engineered for robust 5G MIMO performance, delivering reliable connectivity across global 5GNR, 4G LTE, 3G, and 2G bands (617–5925 MHz). Its advanced design supports high-speed, low-latency broadband for demanding applications such as emergency services, transportation, industrial IoT, and fleet management. The antenna features ground plane independence, omni-directional radiation, and linear polarization for optimal signal strength in all directions. Its rugged ASA UV-stable housing ensures durability and weather resistance, making it ideal for permanent outdoor installations in harsh environments.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

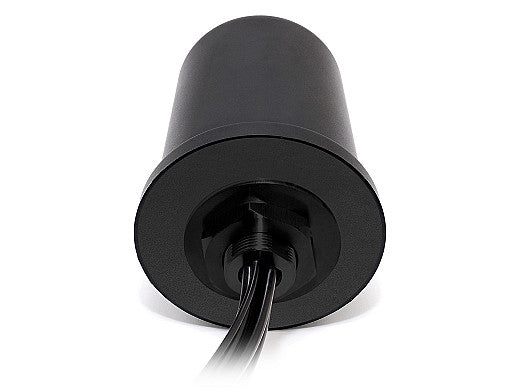

The antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.6, ~-11.7, ~-15.2, ~-14.2
VSWR: ~3.5:1, ~1.9:1, ~1.5:1, ~1.6:1
Efficiency (%): ~32.0, ~41.4, ~41.7, ~36.9
Peak Gain (dBi): ~1.3, ~3.4, ~4.8, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-6.2, ~-12.5, ~-15.1, ~-16.0
VSWR: ~3.2:1, ~1.9:1, ~1.5:1, ~1.5:1
Efficiency (%): ~31.8, ~41.1, ~42.8, ~33.1
Peak Gain (dBi): ~1.2, ~3.5, ~4.6, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.6, ~-12.8, ~-16.7, ~-12.4
VSWR: ~3.7:1, ~1.8:1, ~1.4:1, ~1.8:1
Efficiency (%): ~31.7, ~41.7, ~40.3, ~38.5
Peak Gain (dBi): ~1.3, ~3.8, ~4.5, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.9, ~-12.7, ~-16.8, ~-15.4
VSWR: ~3.3:1, ~1.8:1, ~1.5:1, ~1.5:1
Efficiency (%): ~31.4, ~41.8, ~42.7, ~35.0
Peak Gain (dBi): ~1.7, ~3.4, ~4.6, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
