2J0B90-C884G LTE 450 connector mount Antenna SMA-M

This low-profile LTE 450 antenna is designed for reliable wireless communication within the 410-496 MHz frequency band. Its compact, ground plane dependent monopole design makes it ideal for integration into a wide range of devices and systems. The antenna is well-suited for IoT, M2M, remote monitoring, and mission-critical applications, offering robust signal penetration and wide area coverage, especially in challenging environments such as basements or remote locations. Its durable construction ensures long-lasting performance both indoors and outdoors.

Connections

LTE 450

Connector & Cable

• Connector Type: SMA-Male

Installation / Environmental

Measuring only 44 × 19.1 × 9 mm, the low-profile 2J0B90-C884G features a secure connector mount. This solution is engineered to operate within temperatures ranging from -40°C to +85°C and is suitable for indoor or outdoor use. The antenna's robust construction, including its black TPC-ET radome, ensures durability and resilience in challenging environmental conditions. Additionally, its compliance with RoHS standards reflects its commitment to environmental sustainability.

Because the LTE 450 spectrum is well known to be efficient in remote areas with strong signals through walls and underground, this system is the #1 choice for devices that are typically installed in basements below ground.

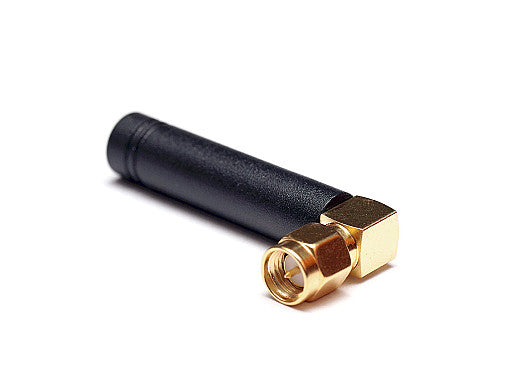

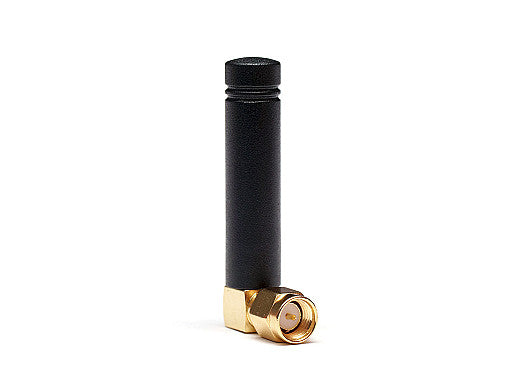

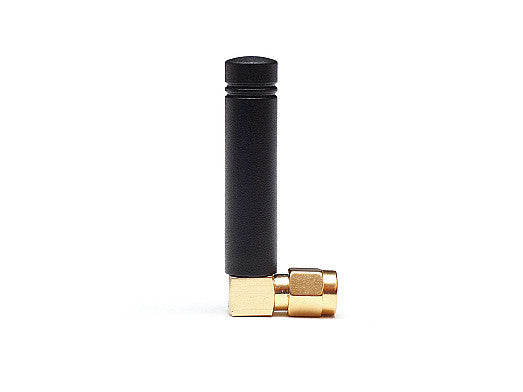

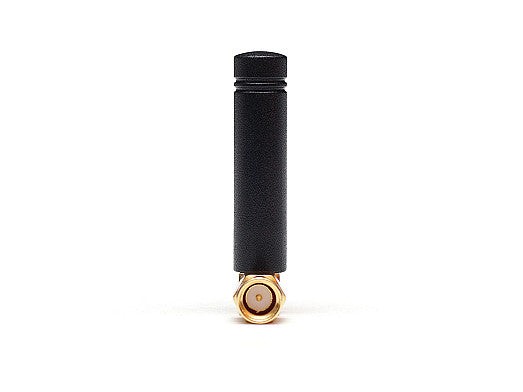

This antenna comes with a SMA-Male (right angle) connector. Our connectors and cables are fully customizable to meet your specific requirements, and our team of highly experienced engineers is readily available to assist in selecting antennas that perfectly align with your unique usage needs.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: LTE 450
Location: External
LPWAN & IoT Communication: NB-IoT, CAT-M
Mounting: Connector Mount
Type: Single

Connection 1 - LTE 450

Standards: LTE Band 450
Frequency: 410-496 MHz
VSWR: ~5.0:1
Efficiency (%): ~40.6
Peak Gain (dBi): ~-1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
