2J2183-C315N 5G connector mount Dipole Antenna N-Male

This high-performance dipole antenna is designed for reliable connectivity across 5G, 4G LTE, FirstNet, CBRS, LPWA, NB-IoT, 3G, and 2G networks. Its wideband design ensures full backward compatibility with 4G LTE and robust operation for a variety of applications, including terminals, base stations, routers, IoT devices, smart home/office systems, vending machines, and more. The omni-directional radiation pattern delivers 360-degree coverage and consistent signal quality, making it ideal for demanding environments where uninterrupted connectivity is essential.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

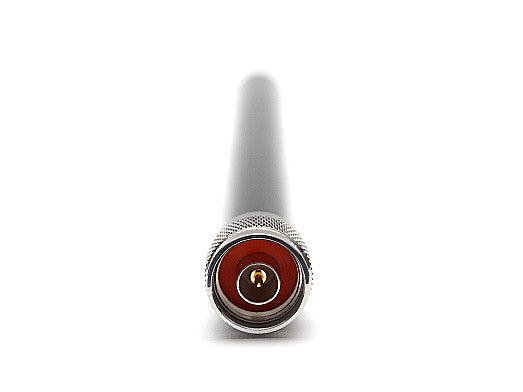

• Connector Type: N-Male

Installation / Environmental

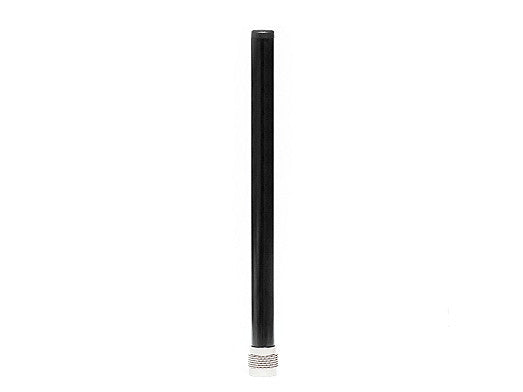

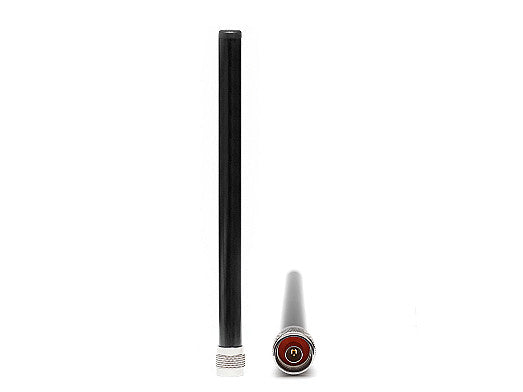

The antenna measures 234 × Ø 20 (Ø 16) mm and features a slim pole design. The durable ASA housing is available in black or white and withstands operating temperatures from -40°C to +85°C. Installation is simple with the N-Male connector, requiring minimal restrictions and no grounding or free space. Expert support is available for installation and customization needs. All products are manufactured with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Connector Mount
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-8.1, ~-13.7, ~-9.7, ~-10.0
VSWR: ~2.6:1, ~1.6:1, ~2.0:1, ~2.5:1
Efficiency (%): ~35.3, ~52.2, ~50.2, ~52.1
Peak Gain (dBi): ~1.3, ~1.5, ~2.8, ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
