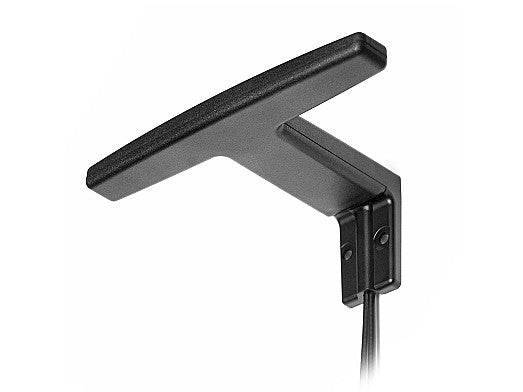

2J2424Ha 4G/LTE wall mount Antenna Spitfire SMA-M 300cm

This high-performance wall mount antenna features a compact, ground plane independent dipole design with MIMO technology for robust 4G/LTE, 3G, and 2G connectivity. Its durable ASA radome and IP67/IP69 protection make it ideal for both indoor and outdoor installations, ensuring reliable operation even in harsh environments. The antenna is perfect for applications requiring instant and stable communication, such as alarm signaling, smart homes, public safety, IoT, and mission-critical systems.

• Exceptional signal reception and data transmission
• Versatile wall-mount design for easy installation
• Suitable for alarm systems, smart homes, first responders, and more
• Maintains high peak gain and efficiency across all cables

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

Measuring only 123 × 81 × 45mm, the compact antenna is engineered to thrive in harsh conditions, thanks to its IP67 and IP69 certifications. Its user-friendly wall-mount design streamlines installation, and the ASA radome, available in either black or white, guarantees durability and aesthetic adaptability.

Both cables have a 300 cm long low-loss LL100 cable and SMA-Male connector. Our connectors and cables are fully customizable to meet your specific requirements, and our team of highly experienced engineers is readily available to assist in selecting antennas that perfectly align with your unique usage needs. For more information, please don't hesitate to reach out to us.

A single cable version of this antenna is also available. Please explore Antenna 2J2424H for more details.

All products are designed and manufactured without hazardous materials while maintaining full RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO, Dipole
Cellular Technologies: 4G/LTE, 3G, 2G
Location: External
Mounting: Wall Mount
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.2:1, ~2.1:1, ~2.6:1
Efficiency (%): ~53.2, ~50.5, ~40.9
Peak Gain (dBi): ~0.7, ~1.9, ~0.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~6.5:1, ~2.7:1, ~2.7:1
Efficiency (%): ~55.0, ~44.8, ~47.4
Peak Gain (dBi): ~2.8, ~2.7, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
