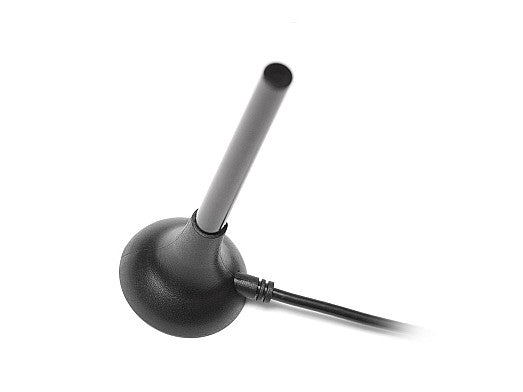

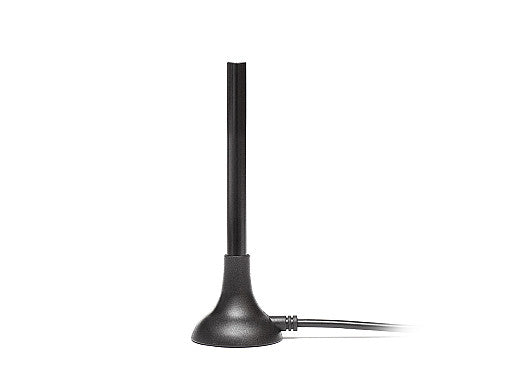

2J3524M 4G/LTE magnetic mount Antenna SMA-M 300cm

This high-performance antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of frequencies. Its compact, ground plane dependent design and magnetic mount make it ideal for mobile, industrial, and remote monitoring applications where easy installation and strong signal reception are required. The antenna supports a broad spectrum of cellular bands, making it suitable for use in telecommunication, IoT, asset tracking, and fleet management systems.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Type: Single
Location: External
Cellular Technologies: 4G/LTE

Connection 1 - CELLULAR/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.7, ~1.8:1
Efficiency (%): ~69.5, ~54.3, ~51.1
Peak Gain (dBi): ~2.2, ~2.2, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35
