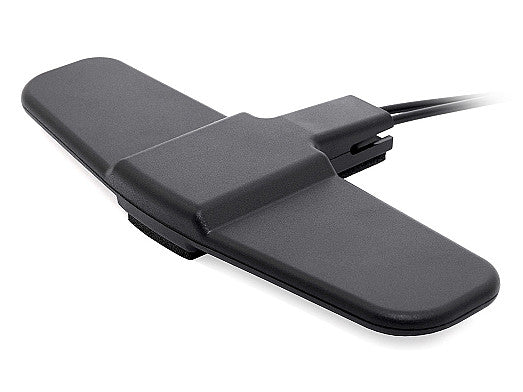

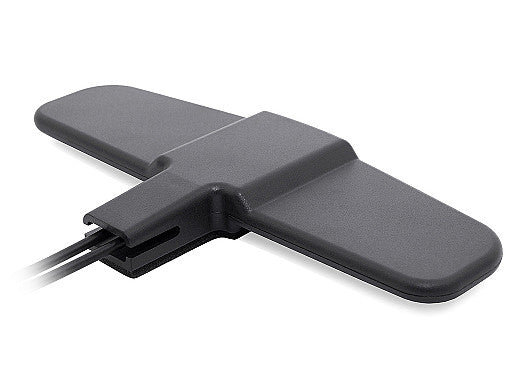

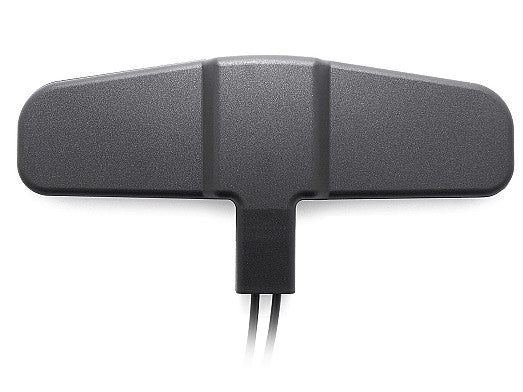

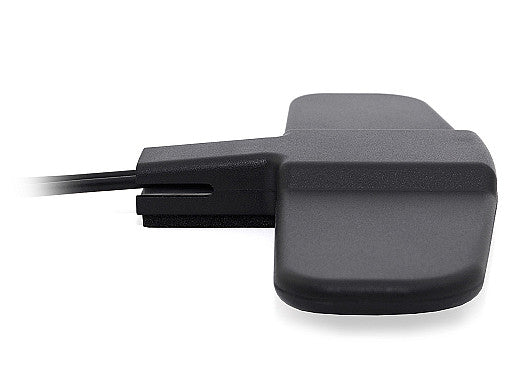

2J4441PGF 4G/LTE, GNSS Antenna adhesive mount SMA-Male 300cm

This 2-in-1 combination antenna delivers reliable global connectivity for both cellular and GNSS applications. Designed for easy adhesive mounting, it supports 4G LTE, 3G, 2G, GPS, QZSS, Galileo, and GLONASS standards, making it ideal for navigation, automotive, smart metering, and IoT solutions. The antenna is ground plane independent and built with UV-stable ABS for durability in harsh environments. Its wideband cellular element ensures strong signal strength and stable efficiency, while the active GNSS element provides high-precision navigation.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male (Cellular), Customizable (GNSS)
• Cable Length: 300cm (Cellular), Customizable (GNSS)
• Cable Type: LMR195 (Cellular), RG174 (GNSS)

Installation / Environmental

This external antenna is manufactured with ABS UV stable, making it resistant in temperatures between -40C and +85C. With ground plane independence, this adhesive mount antenna is easy to install with maximum durability. Cable 1 comes with a standard SMA-Male connector and 300 cm long LMR195 (Low Loss coaxial) cable while cable 2 comes with RG174 and both are fully customizable by offering additional connector types, cable lengths and cable types. The antenna is RoHS and REACH compliant with IP67 certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.3:1, ~1.7:1
Efficiency (%): ~72, ~71, ~71
Peak Gain (dBi): ~3.1, ~4.1, ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35

Connection 2 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40.5 – 137.5
