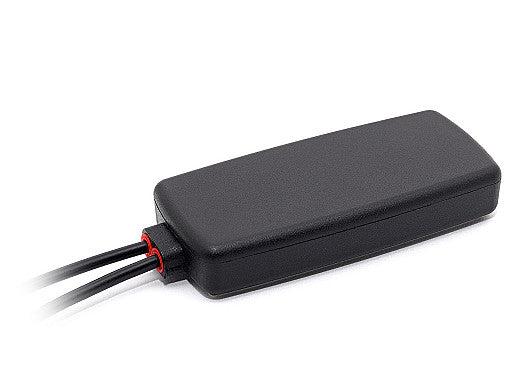

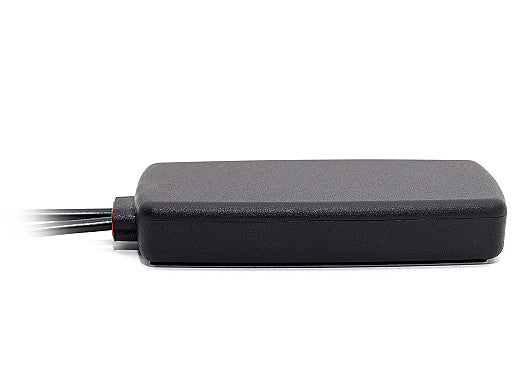

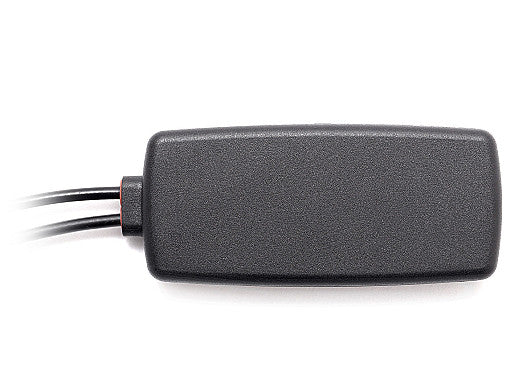

2J4885P 5G, Wi-Fi 6E/7 Antenna adhesive Mount 2-in-1

This low-profile, ultra-wideband antenna is designed for high-performance 5G and Wi-Fi 6E/7 connectivity in a compact adhesive mount form factor. Its 2-in-1 combination supports a wide range of cellular and wireless standards, making it ideal for applications such as mobile networks, IoT, asset tracking, smart cities, and industrial monitoring. The antenna is ground plane independent and offers full backward compatibility with 4G LTE, ensuring reliable operation across diverse environments. Its robust IP67/IP69-rated housing provides excellent protection for outdoor and demanding installations.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-9.4, ~-8.9, ~-7.9, ~-8.5
VSWR: ~2.6:1, ~2.2:1, ~2.6:1, ~2.3:1
Efficiency (%): ~46.9, ~46.5, ~35.2, ~38.1
Peak Gain (dBi): ~3.0, ~2.9, ~2.7, ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~2.0:1, ~2.2:1, ~1.5:1
Efficiency (%): ~29.1, ~27.2, ~28.8
Peak Gain (dBi): ~3.9, ~4.4, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
