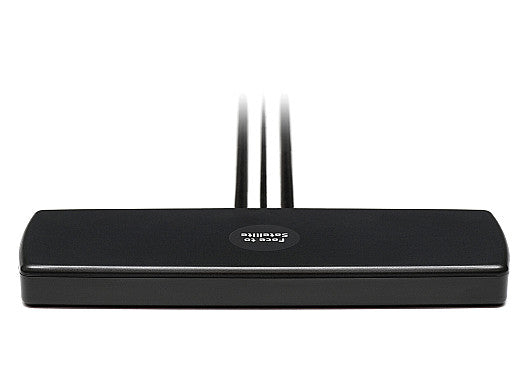

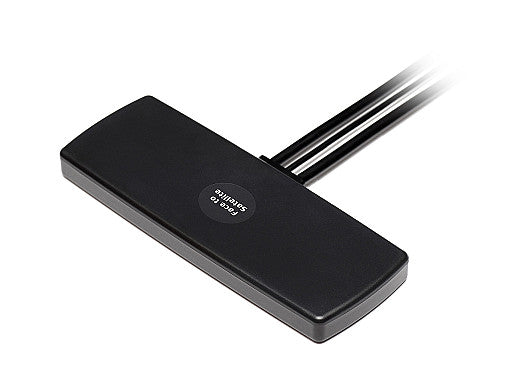

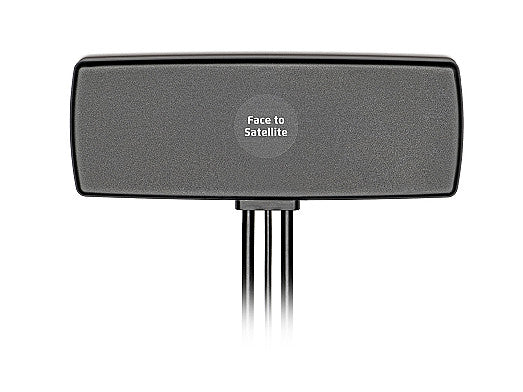

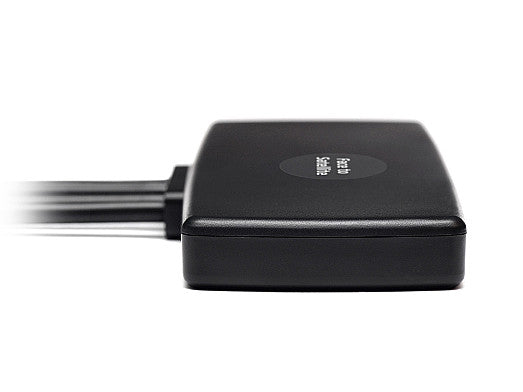

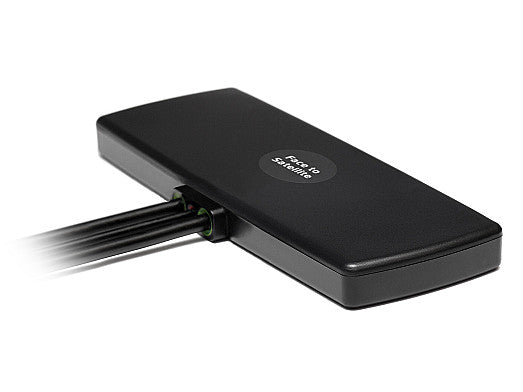

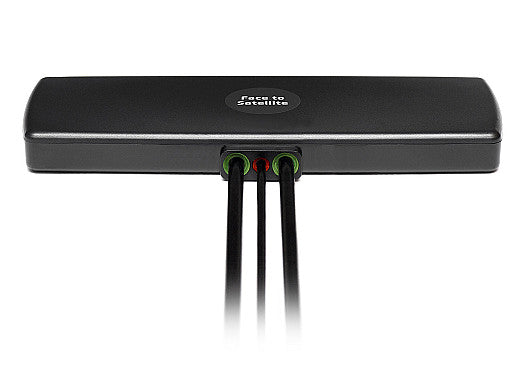

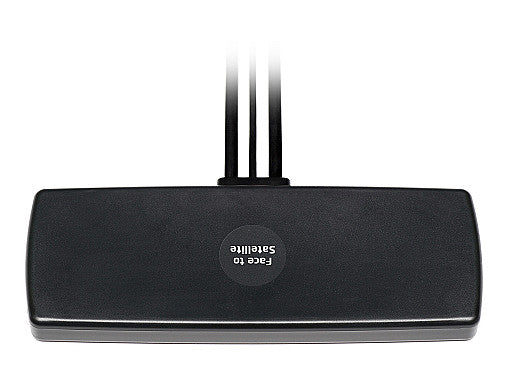

2J4A41PCFa 4G/LTE, GNSS Antenna adhesive mount IP67/IP69K

This compact combination antenna delivers high-performance LTE-MIMO and GNSS connectivity in a low-profile design, making it ideal for space-constrained applications. Its advanced engineering ensures reliable, high-efficiency data transfer and precise geolocation, supporting a wide range of global cellular and satellite navigation standards. The antenna is ground plane independent and features a robust, weather-resistant enclosure for long-term durability in demanding environments. Typical applications include infotainment systems, fleet management, connected vehicles, gateways, routers, and more.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/BEI/QZSS/Galileo/L1

Installation / Environmental

The antenna can be easily installed or hidden in any part of your environment and application; on the top or bottom surfaces including windshields, dash, plastic, etc., as it comes equipped with a separate double adhesive pad that secures it safely. This product includes a low loss double shielded cable with fully customized length and connector that provides maximum antenna performance and reliability, avoiding drop connections, higher speed data, higher gain, etc. 3-in-1 feature allows for a quick handling in places where other solutions fail to implement and eliminates the need for the extensive labor involved in the installation of the product, saving time and resources.

With IP67 and IP69K ingress rating, this product provides maximum protection against dust and water and allows high pressure and steam cleaning. Passing drop test and vibration provides extra robustness ensuring longevity of the product, making it a cost-effective solution. The UV coating allows maximum protection against extensive outdoor use in extreme environments and temperatures.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 4G LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.3:1, ~1.9:1
Efficiency (%): ~52.9, ~63.2, ~43.7
Peak Gain (dBi): ~2.2, ~3.6, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 4G LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.5:1, ~2.0:1
Efficiency (%): ~45.3, ~58.9, ~41.2
Peak Gain (dBi): ~1.1, ~4.4, ~2.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GNSS

Standards: BeiDou, GPS, QZSS, Galileo, GLONASS
Frequency: 1561.098, 1575.42, 1598-1610 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
