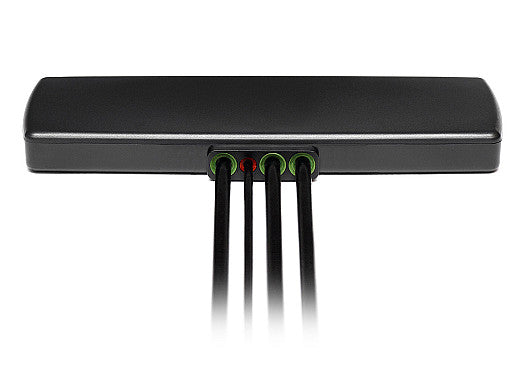

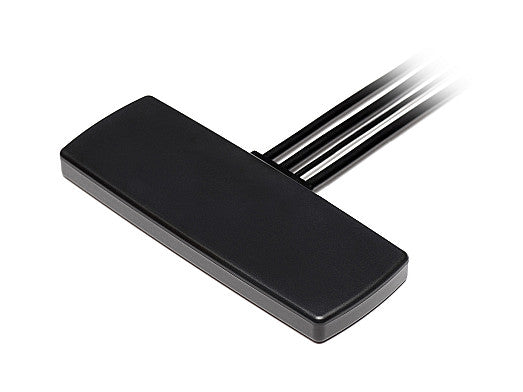

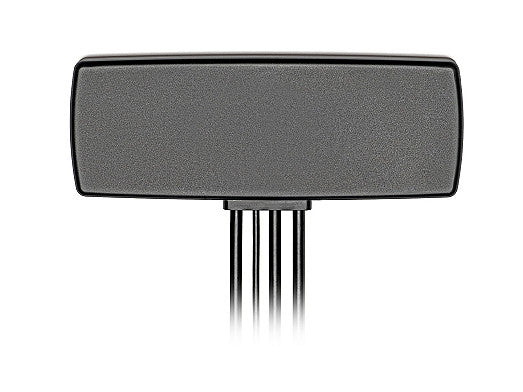

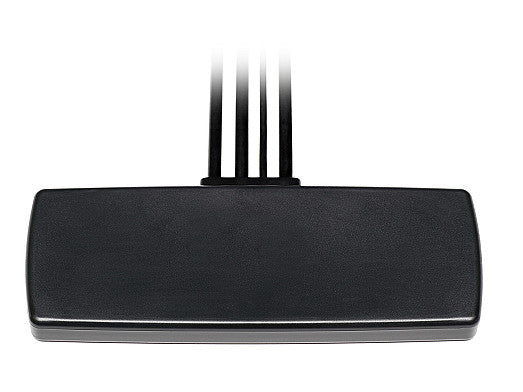

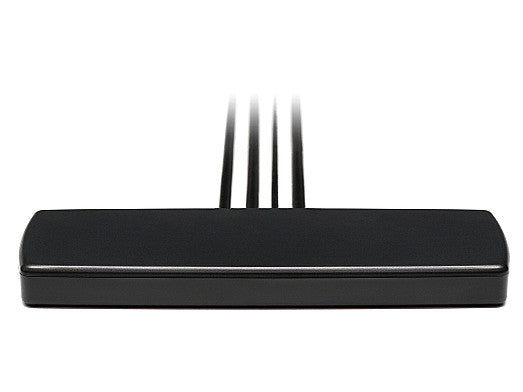

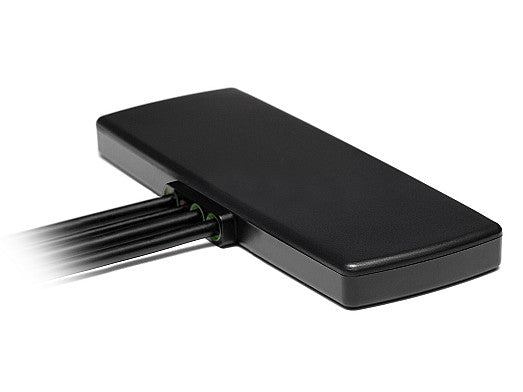

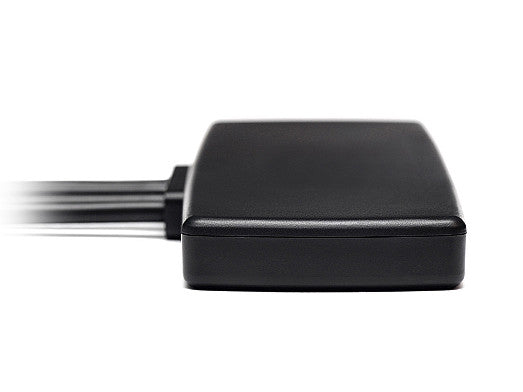

2J4A47Pc 4G/LTE, Wi-Fi, ISM adhesive mount Antenna 4-in-1

This compact 4-in-1 antenna delivers high-performance LTE-MIMO and 2.4/5.0 GHz Wi-Fi MIMO connectivity in a single, low-profile package. Designed for versatility, it is compatible with all LTE, 4G, 3G, and 2G networks, as well as Wi-Fi, Bluetooth, ZigBee, and ISM applications. Its ground plane independence and wideband coverage make it ideal for demanding environments where space is limited. The antenna is suitable for a wide range of applications, including infotainment systems, Wi-Fi hotspots, HD video transmission, connected vehicles, fleet management, gateways, routers, and public transportation. The robust design ensures reliable operation even in harsh conditions, with IP67 and IP69K ingress protection for maximum durability.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

The antenna can be easily installed or hidden in any part of your environment and application; on the top or bottom surfaces including windshields, dash, plastic, etc., as it comes equipped with a separate double adhesive pad that secures it safely. This product includes a low loss double shielded cable with fully customized length and connector that provides maximum antenna performance and reliability, avoiding drop connections, higher speed data, higher gain, etc. The 4-in-1 feature allows for a quick handling in places where other solutions fail to implement and eliminates the need for the extensive labor involved in the installation of the product, saving time and resources. Not only does this technology assure smooth performance, but it also comes bearing safety guarantee. With IP67 and IP69K ingress rating, the product provides maximum protection against dust and water and allows high pressure and steam cleaning. Passing drop test and vibration provides extra robustness ensuring longevity of the product, making it a cost-effective solution. The UV coating allows maximum protection against extensive outdoor use in extreme environments and temperatures.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-M, Cat-NB
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 4G LTE MIMO

Standards: 2G, 3G, 4G LTE, Cat-X, Cat-M, Cat-NB (NB-IoT)
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.8:1, ~1.3:1, ~2.0:1
Efficiency (%): ~49.6, ~52.6, ~39.1
Peak Gain (dBi): ~2.0, ~2.7, ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 4G LTE MIMO

Standards: 2G, 3G, 4G LTE, Cat-X, Cat-M, Cat-NB (NB-IoT)
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.0:1, ~1.5:1, ~1.3:1
Efficiency (%): ~47.4, ~50.4, ~41.2
Peak Gain (dBi): ~1.7, ~4.0, ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM MIMO

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.1:1, ~1.6:1
Efficiency (%): ~45.3, ~40.2
Peak Gain (dBi): ~3.0, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4/5.0 GHz ISM MIMO

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.2:1, ~1.5:1
Efficiency (%): ~46.6, ~44.5
Peak Gain (dBi): ~3.7, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
