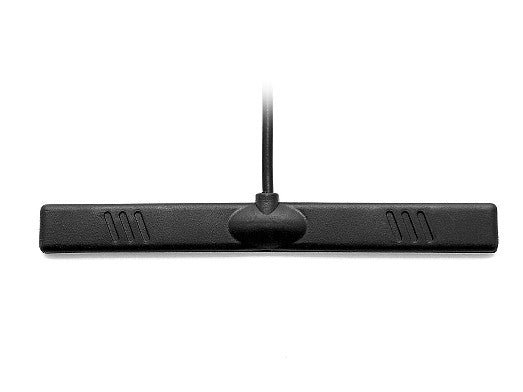

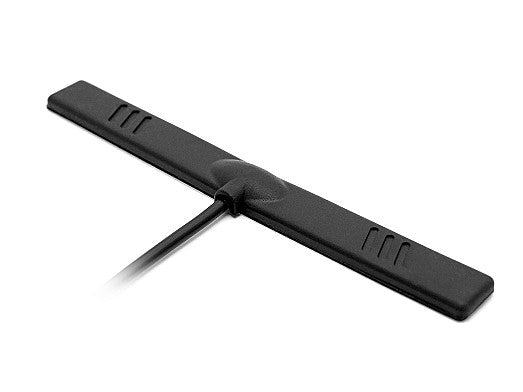

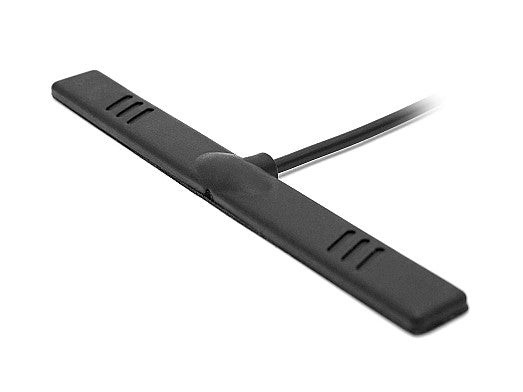

2J5283P 5G adhesive mount Antenna SMA-M 200cm

This ultra-wideband adhesive mount antenna delivers reliable connectivity for 5G, 4G, 3G, and 2G networks, supporting a wide frequency range from 617 MHz to 5925 MHz. Its ground plane independent design and flexible, low-profile housing make it ideal for commercial, industrial, and consumer applications where easy installation and robust performance are required. The peel-and-stick application allows for quick mounting on glass or ABS surfaces, making it suitable for automotive, IoT, telemetry, telematics, and high-volume MIMO networks. The antenna ensures strong signal strength and high efficiency with an omni-directional radiation pattern, and is fully compatible with LTE and NB-IoT (CAT-M2) for future-proof deployments.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 200cm
• Cable Type: LL100

Installation / Environmental

With overall dimensions of only 117.4 x 12.5 x 6.5 mm, high-quality adhesive tape and PC/ABS UV stable housing, the 2J5283P can be installed on any glass or ABS surfaces found in the most extreme outdoor environments without any risk of failure. The 2J5283P features a standard SMA-Male connector and a 200 cm long LL100 cable. 2J Antennas also offers a wide range of alternative connectors and cables to meet our customers’ most unique design requirements. As an added measure, this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process. The health of the environment is important; therefore, all products are manufactured without hazardous materials making them fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.5, ~-10.9, ~-13.5, ~-11.7
VSWR: ~2.9:1, ~2.0:1, ~1.7:1, ~1.9:1
Efficiency (%): ~58.6, ~58.5, ~40.3, ~30.0
Peak Gain (dBi): ~2.0, ~2.4, ~4.6, ~5.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
