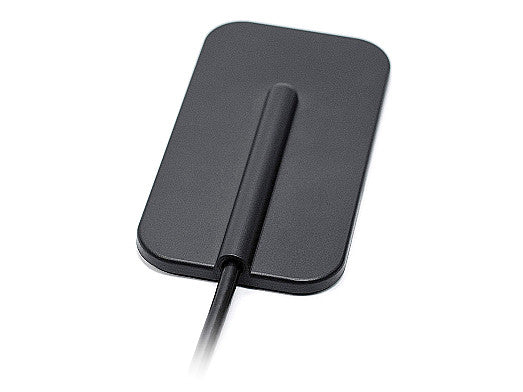

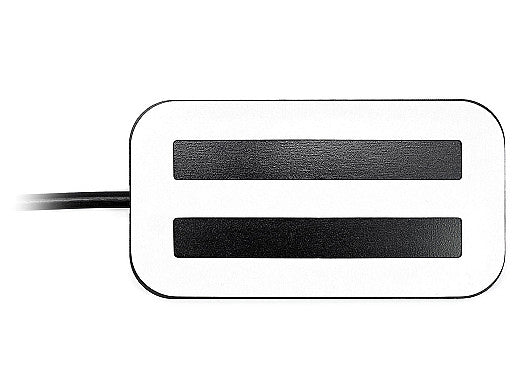

2J5424P 4G/LTE adhesive mount Antenna SMA-M 300cm

This compact ultra-wideband antenna is designed for reliable mobile connectivity across 4G LTE, 3G, and 2G networks. Its low-profile, adhesive mount form factor makes it ideal for both indoor and outdoor installations, especially where space is limited or a discreet appearance is required. The antenna is ground plane independent and supports a wide range of cellular bands, making it suitable for distributed antenna systems (DAS) in environments such as malls, industrial buildings, airports, hospitals, and more. Typical applications include wireless broadband, mobile devices, data terminals, smart devices, public safety communications, smart metering, and automation systems.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LMR195

Installation / Environmental

The antenna is protected with a lightweight and durable layer of PC/ASA UV stable material giving protection in outdoor or indoor temperatures as low as -40C (-40F) and as high as +85C (+185F). Total measurements for this compact antenna are only 112.5 x 60 x 11.3 mm and is easy to install thanks to its adhesive peel-n-stick mount for rough or smooth surface installations without the need for ground or free space.
2J5424P is tuned for optimal antenna performance with a 300cm long LMR195 standard cable that feeds from the side of the antenna wall and with an SMA-Male connection. We offer a large selection of alternative connectors and cables that meets any customization needs. Our experts are available to assist our customers with antenna selection and customization needs.
All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Cellular Technologies: 4G/LTE
Antenna Technologies: Dipole

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.7:1, ~2.1:1, ~2.0:1
Efficiency (%): ~44, ~49, ~48
Peak Gain (dBi): ~1.8, ~1.4, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
