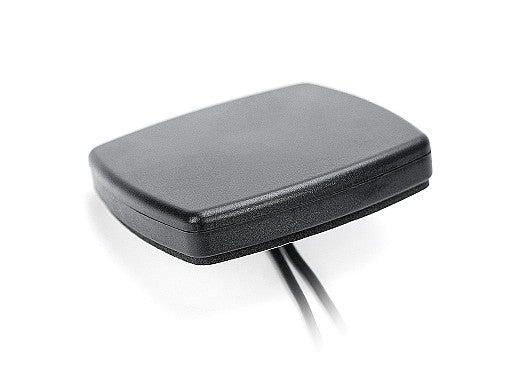

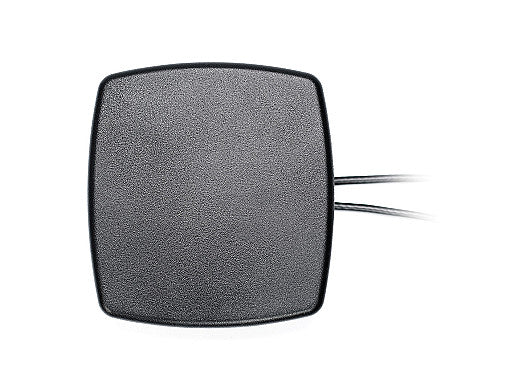

2J6024Ba 4G/LTE screw mount Antenna 2-in-1

This compact, low-profile antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in demanding environments. Its 2-in-1 MIMO configuration ensures enhanced data throughput and stable wireless performance, making it ideal for applications such as mobile networks, IoT devices, asset tracking, smart cities, and industrial monitoring. The ground plane independent design allows for flexible installation on a variety of surfaces, while the robust screw mount ensures secure attachment even in challenging conditions. The antenna supports a wide range of global LTE bands, making it suitable for worldwide deployments.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External

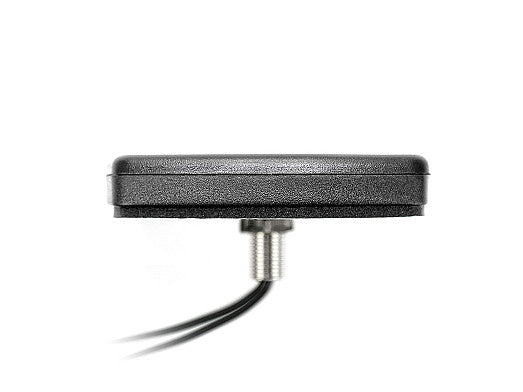

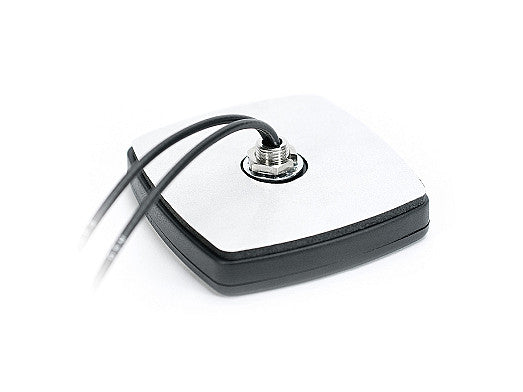

Mounting: Screw Mount
Type: Combination

Connection 1 - 4G LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~2.4:1, ~1.3:1
Efficiency (%): ~31.5, ~30.4, ~43.8
Peak Gain (dBi): ~0.7, ~2.7, ~4.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 4G LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.0:1, ~2.3:1, ~1.3:1
Efficiency (%): ~33.0, ~29.5, ~43.1
Peak Gain (dBi): ~1.4, ~2.2, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
