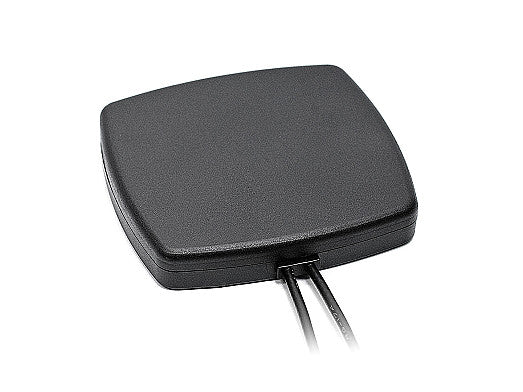

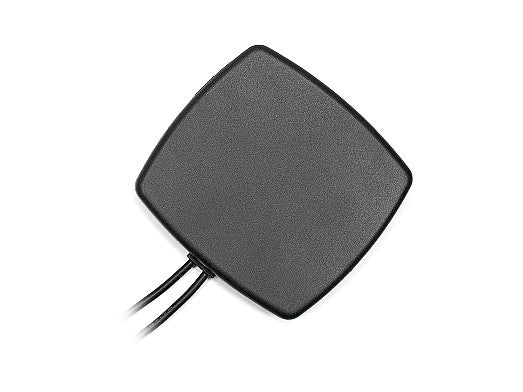

2J6024Ma 4G/LTE magnetic mount Antenna 2-in-1

This compact, low-profile antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in a wide range of applications. Its 2-in-1 MIMO configuration ensures enhanced data throughput and signal stability, making it ideal for mobile networks, IoT, telematics, and industrial monitoring. The ground plane independent design and magnetic mounting allow for flexible installation on various surfaces, while the robust construction supports use in demanding environments.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~2.6:1, ~2.1:1
Efficiency (%): ~25.3, ~20.2, ~36.1
Peak Gain (dBi): ~-0.7, ~1.7, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.5:1, ~2.5:1, ~2.2:1
Efficiency (%): ~25.7, ~22.5, ~35.2
Peak Gain (dBi): ~0.8, ~1.8, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
