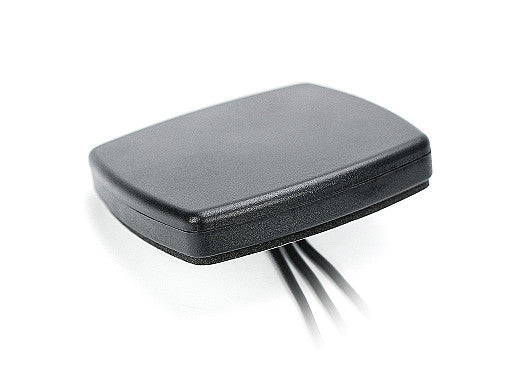

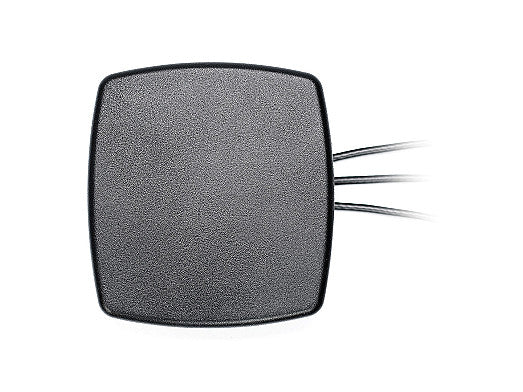

2J6041BGFa 4G/LTE, GNSS screw mount Antenna 3-in-1 SMA-M 300cm

This compact 3-in-1 antenna delivers reliable global connectivity for cellular and GNSS applications. Its ground plane independent design and low profile make it ideal for automotive, telematics, transportation, and remote monitoring. The antenna supports 4G LTE, 3G, 2G, GPS, Galileo, and GLONASS, ensuring high efficiency and uninterrupted performance in demanding environments. Perfect for fleet management, navigation, and tracking devices.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm

Installation / Environmental

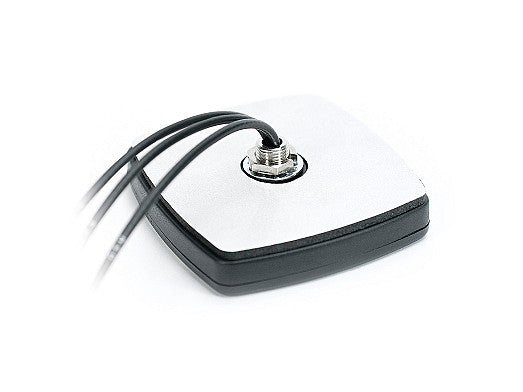

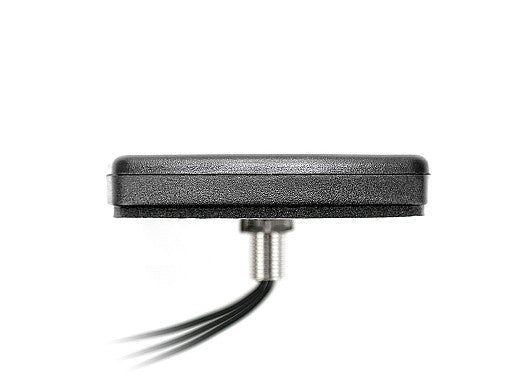

2J6041BGFa antenna is an outdoor/indoor antenna equipped with three ports. The production material used is ABS, protecting the antenna from temperatures between -40C and +85C. All cables on 2J6041BGFa antenna have an SMA-Male standard connector, a 300cm standard cable length, and are fully customizable by offering additional connector types, cable lengths, and cable types. This antenna is ground plane independent making it suitable for installation anywhere on any surface. It does not require any metallic surface for its installation. The screw mount allows for easy installation and removal. It is a robust, reliable, and durable antenna even in extreme environments. The 2J6041BGFa is RoHS compliant.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~2.1:1, ~2.1:1
Efficiency (%): ~27.0, ~28.8, ~25.0
Peak Gain (dBi): ~-0.1, ~2.5, ~2.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.9:1, ~2.2:1, ~1.8:1
Efficiency (%): ~43.8, ~24.9, ~30.8
Peak Gain (dBi): ~2.5, ~2.0, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
