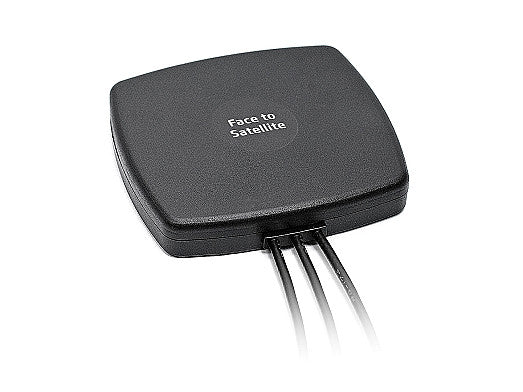

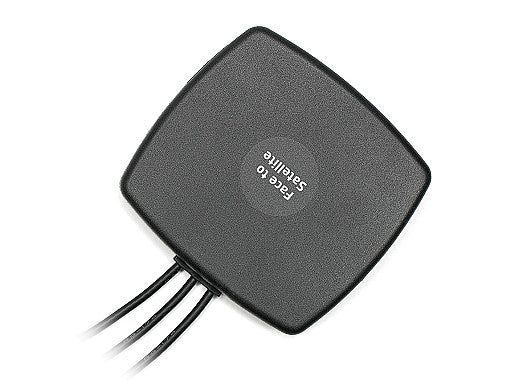

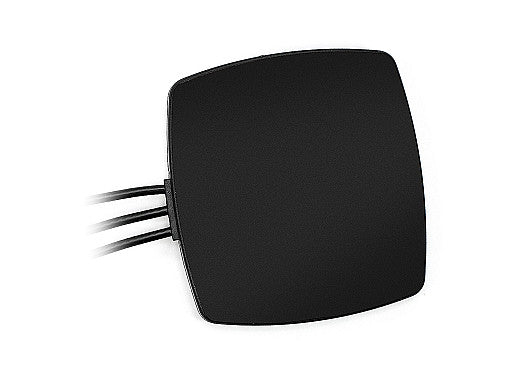

2J6041MGFa 4G/LTE, GNSS magnetic mount Antenna 3-in-1 MIMO

This low-profile combination antenna is designed for reliable connectivity across 4G LTE, 3G, 2G, and GNSS (GPS, GLONASS, Galileo, QZSS) networks. Its ground plane independent design and magnetic mount make it ideal for mobile, automotive, and industrial applications where flexible installation and robust performance are required. The antenna features wideband cellular support, active GNSS with pre-filter, and is suitable for use in demanding environments.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.5:1, ~2.0:1, ~1.7:1
Efficiency (%): ~34.1, ~31.3, ~37.0
Peak Gain (dBi): ~1.9, ~2.9, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~2.4:1, ~1.5:1
Efficiency (%): ~27, ~23.1, ~40.6
Peak Gain (dBi): ~0.3, ~1.9, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
