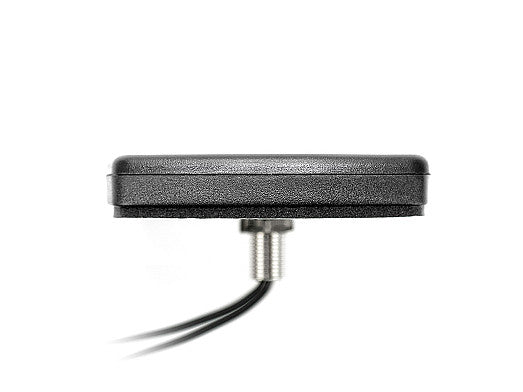

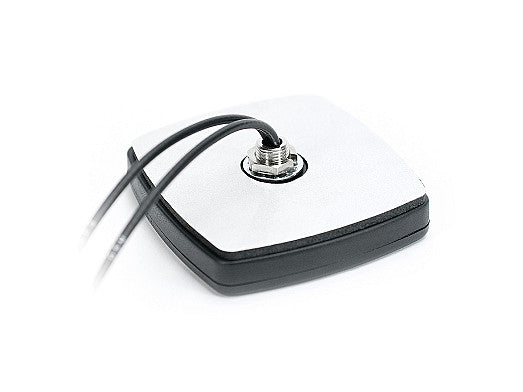

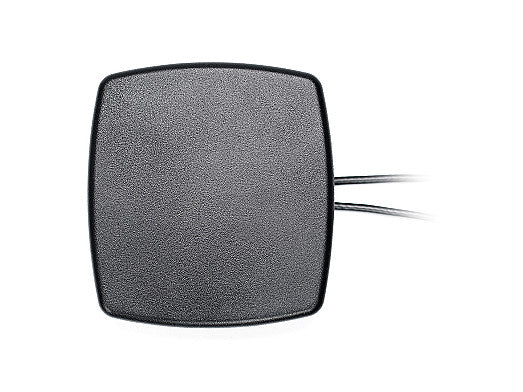

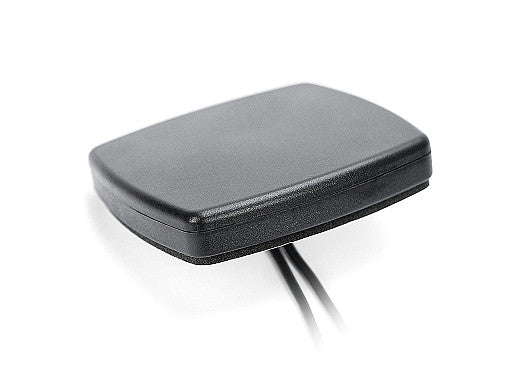

2J6047B 4G/LTE, Wi-Fi, ISM screw mount Antenna Combination

This compact and versatile antenna is designed for reliable performance across a wide range of cellular and wireless applications. Its low-profile, ground plane independent design makes it ideal for installations where space is limited, while still delivering strong signal quality for both 4G/LTE and Wi-Fi/ISM bands. The antenna is suitable for use in mobile networks, IoT, asset tracking, smart cities, and industrial monitoring, providing robust connectivity for mission-critical and everyday wireless systems.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.4:1, ~2.4:1, ~1.4:1
Efficiency (%): ~26.2, ~37.1, ~54.8
Peak Gain (dBi): ~-0.3, ~4.6, ~6.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~1.5:1
Efficiency (%): ~43.4, ~31.9
Peak Gain (dBi): ~4.5, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
