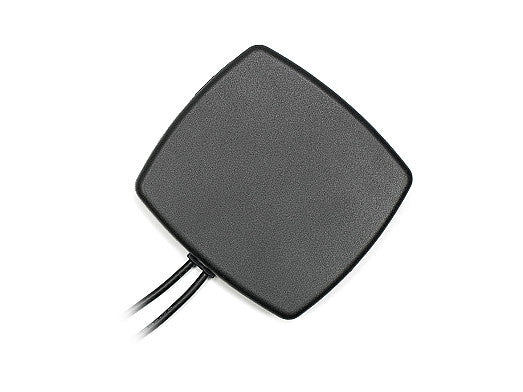

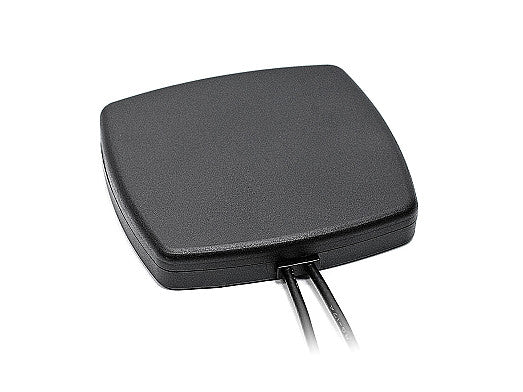

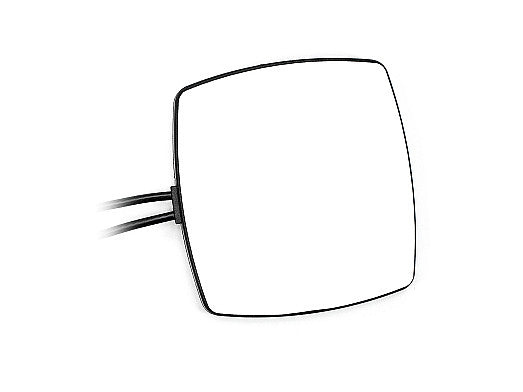

2J6047P 4G/LTE, Wi-Fi, ISM Antenna adhesive mount

This compact and versatile antenna is designed for reliable connectivity across 4G/LTE, Wi-Fi, and ISM bands. Its low-profile, ground plane independent design makes it ideal for installations where space is limited, while still delivering strong performance for a wide range of wireless applications. The adhesive mount ensures easy and secure installation on various surfaces, making it suitable for automotive, industrial, IoT, and smart device deployments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.6:1, ~1.2:1, ~1.6:1
Efficiency (%): ~46.9, ~65.6, ~53.8
Peak Gain (dBi): ~3.4, ~4.6, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~1.4:1
Efficiency (%): ~48.6, ~35.5
Peak Gain (dBi): ~4.0, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
