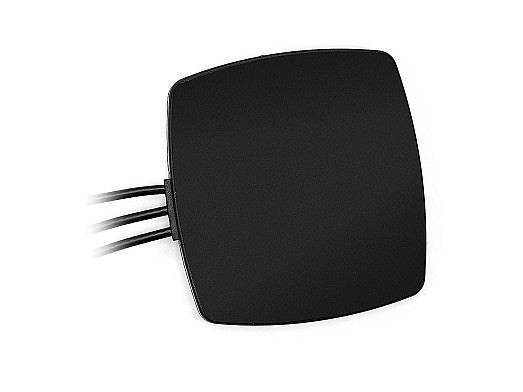

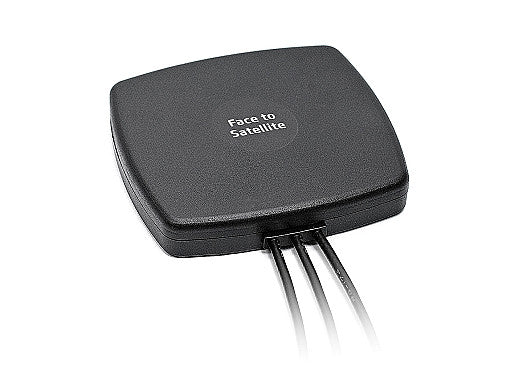

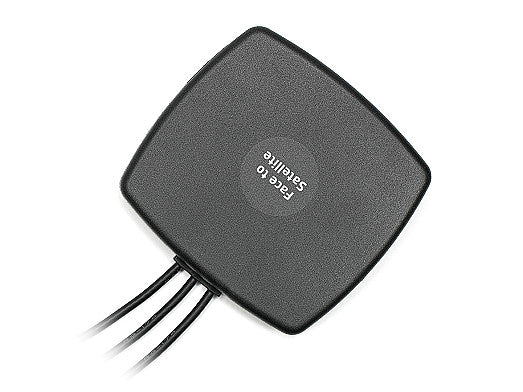

2J6050PGF 4G/LTE, GNSS, Wi-Fi, ISM Antenna adhesive 3-in-1

This low-profile, ground plane independent antenna is designed for versatile connectivity across cellular, GNSS, and Wi-Fi/ISM bands. Its 3-in-1 combination supports LTE, Wi-Fi, and satellite navigation devices, making it ideal for applications such as asset tracking, telematics, IoT, smart cities, and more. The adhesive mount allows for easy installation on a variety of surfaces, while the active GNSS element ensures reliable positioning. The antenna is suitable for use in demanding environments where wideband coverage and robust performance are required.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.2:1, ~2.2:1
Efficiency (%): ~55.6, ~56.0, ~38.7
Peak Gain (dBi): ~2.9, ~3.2, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.3:1
Efficiency (%): ~50, ~30
Peak Gain (dBi): ~3.2, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
