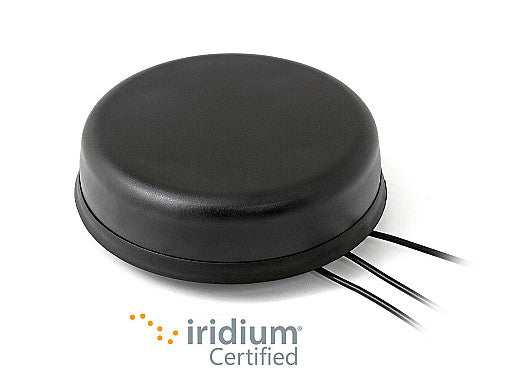

2J6552BGF 5G, GNSS, Iridium screw mount Antenna 3-in-1 SMA-M 300cm

This high-performance 3-in-1 antenna delivers reliable global connectivity by combining 5G NR/4G LTE/3G/2G cellular, GNSS (GPS, QZSS, Galileo, GLONASS), and Iridium satellite technologies in a single, robust screw mount housing. Designed for demanding applications, it ensures uninterrupted communication and precise navigation for automotive, fleet management, telematics, emergency response, and global tracking systems. The omni-directional radiation pattern and wide frequency coverage maximize signal quality and reliability, while the heavy-duty, anti-rotation design and IP67/IP69K/IK09 certifications guarantee durability in harsh environments.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LMR100

Installation / Environmental

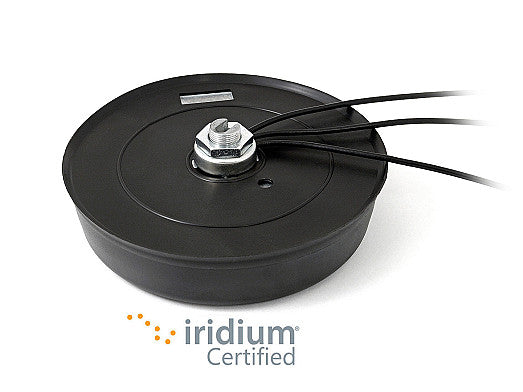

For external and internal applications, the antenna is manufactured with a combination of ABS UV stable and ceramic materials, protecting the antenna from temperatures between -40C and +85C. With the anti-rotation mechanism and ground plane dependence, this screw mount antenna is easy to install with maximum durability. All cables come with SMA-Male connector type and 300cm LMR100 standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. The antenna is RoHS compliant with complete IK09, IP67 and IP69K certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.5, ~-9.7, ~-11.2, ~-14.2
VSWR: ~3.3:1, ~2.3:1, ~2.1:1, ~1.7:1
Efficiency (%): ~22.4, ~20.0, ~15.5, ~16.4
Peak Gain (dBi): ~-1.5, ~-1.5, ~-1.3, ~0.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Radiation Pattern: Omni-Directional

Connection 2 - IRIDIUM

Standards: IRIDIUM
Frequency (MHz): 1616-1627
Passive Gain (dBi): ~4.5
Efficiency (%): ~76
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7V
