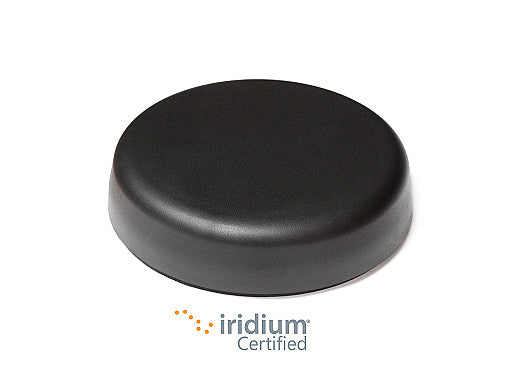

2J6552BGF-M18-SP 5G, GNSS, Iridium screw mount Antenna 3-in-1 SMA-M 300cm IP69K

This high-reliability 3-in-1 antenna delivers robust global connectivity by combining 5G NR, 4G LTE, 3G, 2G cellular, GNSS (GPS, QZSS, Galileo, GLONASS), and Iridium satellite technologies in a single, compact screw-mount housing. Designed for demanding environments, it ensures uninterrupted communication and precise navigation, making it ideal for automotive, fleet management, telematics, emergency response, and global tracking applications. The antenna features ground plane independence, anti-rotation mounting, and is built with UV-stable ASA material for long-term durability in harsh conditions. Certified to IP67, IP69K, and IK09 standards, it is suitable for both external and internal installations.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LMR100

Installation / Environmental

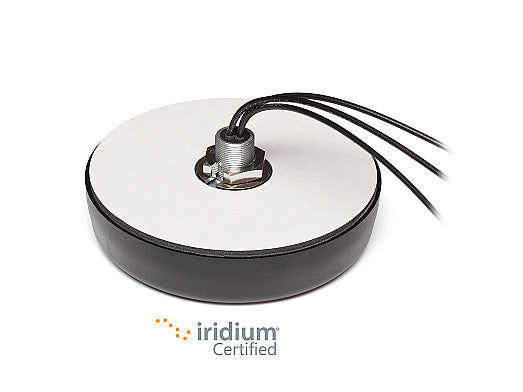

For external and internal applications, the antenna is manufactured with ASA UV stable material, protecting the antenna from temperatures between -40C and +85C. With the anti-rotation mounting and ground plane independence, this screw mount antenna is easy to install with maximum durability. All cables come with SMA-Male connector type and 300cm LMR100 standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. The 2J6552BGF-M18-SP is RoHS compliant with complete IK09, IP67 and IP69K certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.5, ~-9.7, ~-11.2, ~-14.2
VSWR: ~3.3:1, ~2.3:1, ~2.1:1, ~1.7:1
Efficiency (%): ~20.7, ~18.5, ~15.3, ~15.9
Peak Gain (dBi): ~-1.7, ~-1.7, ~-1.3, ~0.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Radiation Pattern: Omni-Directional

Connection 2 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Passive Gain (dBi): ~4.5
Efficiency (%): ~76
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7V
