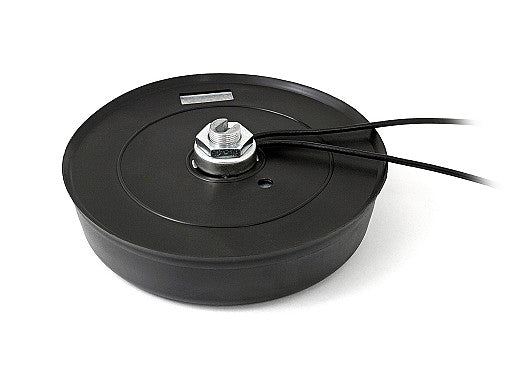

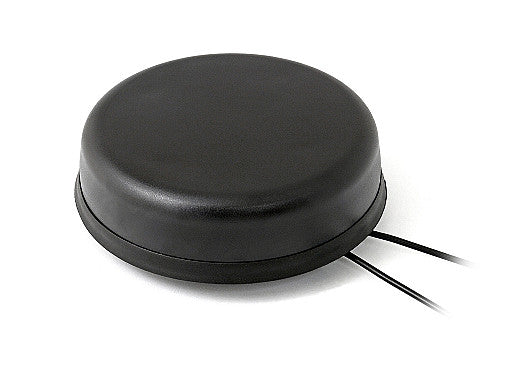

2J6584BGF 5G, GNSS screw mount Antenna 2-in-1 SMA-M 300cm IP69K

This ultra wide band antenna delivers reliable 5G NR, 4G LTE, 3G, 2G, and GNSS connectivity in a rugged, compact screw mount form factor. Designed for maximum reliability in global mobility applications, it supports a wide range of cellular and satellite navigation standards, making it ideal for automotive, fleet management, navigation, IoT, and tracking systems. The omni-directional radiation pattern ensures strong signal quality and uninterrupted connectivity, while the active GNSS element enhances navigation accuracy and redundancy. The robust housing is certified to IP67, IP69K, and IK09 for durability in harsh environments.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

For external and internal applications, the antenna is manufactured with a combination of ABS UV stable and Zamak materials, protecting the antenna from temperatures between -40C and +85C. With the anti-rotation mechanism and ground plane dependence, this screw mount antenna is easy to install with maximum durability. All cables come with SMA-Male connector type and 300cm LL100 standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. The antenna is RoHS compliant with complete IK09, IP67 and IP69K certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.4, ~-9.7, ~-11.2, ~-14.2
VSWR: ~3.3:1, ~2.3:1, ~2.1:1, ~1.7:1
Efficiency (%): ~20.7, ~18.5, ~15.3, ~15.9
Peak Gain (dBi): ~-1.7, ~-1.7, ~-1.3, ~0.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Radiation Pattern: Omni-Directional

Connection 2 - GNSS (GPS/GLONASS/QZSS/Galileo)

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7V

Download Datasheet PDF
