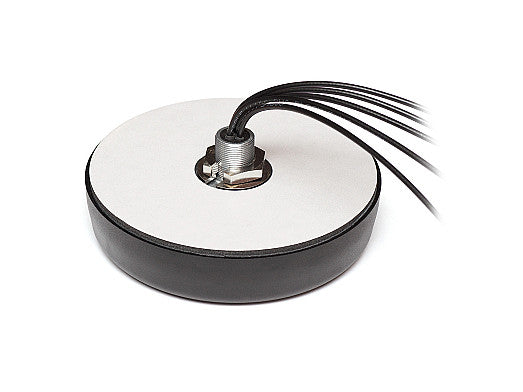

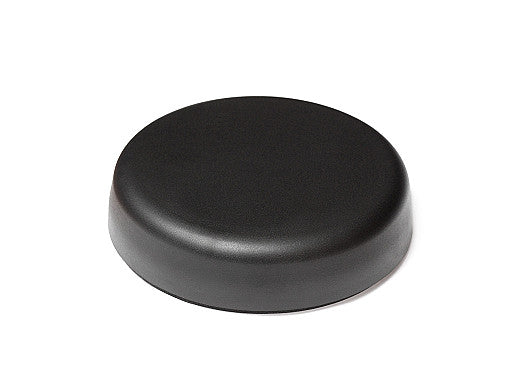

2J6586BGFa-M18-SP 5G, GNSS, Wi-Fi 6E/7, ISM screw mount Antenna 5-in-1

This ultra wideband 5-in-1 antenna is designed for high-performance connectivity across 5G, Wi-Fi 6E/7, GNSS, and ISM bands. Its robust screw mount design ensures secure installation, making it ideal for automotive, public safety, industrial IoT, and smart city applications. The antenna supports advanced MIMO technology for both cellular and Wi-Fi, delivering reliable, high-speed data transmission and precise location tracking. With active GNSS and pre-filtering, it offers enhanced navigation accuracy. The rugged housing is rated IP67, IP69, and IK09 for superior protection in harsh environments.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-6.5, ~-11.2, ~-14.5, ~-15.7
VSWR: ~3.0:1, ~1.9:1, ~1.5:1, ~1.5:1
Efficiency (%): ~20.0, ~18.7, ~15.5, ~10.9
Peak Gain (dBi): ~-3.6, ~-2.1, ~-1.7, ~-5.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-6.4, ~-11.3, ~-14.7, ~-15.5
VSWR: ~3.0:1, ~1.9:1, ~1.5:1, ~1.5:1
Efficiency (%): ~18.3, ~16.6, ~12.6, ~10.1
Peak Gain (dBi): ~-3.9, ~-2.4, ~-2.2, ~-6.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.8:1, ~2.6:1, ~2.0:1
Efficiency (%): ~51.1, ~18.3, ~9.4
Peak Gain (dBi): ~4.0, ~0.8, ~-6.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~2.0:1, ~2.9:1, ~1.4:1
Efficiency (%): ~52.7, ~15.5, ~12.4
Peak Gain (dBi): ~3.7, ~0.0, ~-4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 5 - GPS/GLONASS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency (MHz): 1575.42, 1598-1610
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.5 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Saw Filter Type: Pre-Filter
ESD Protection (kV): 2

Download Datasheet PDF
