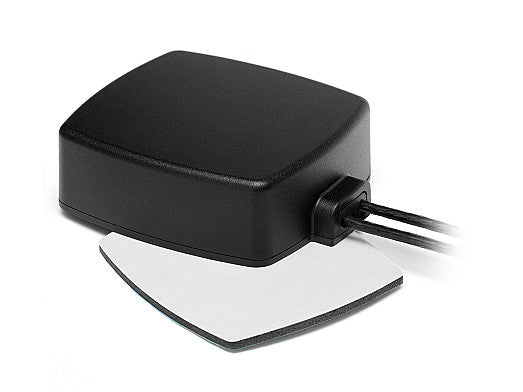

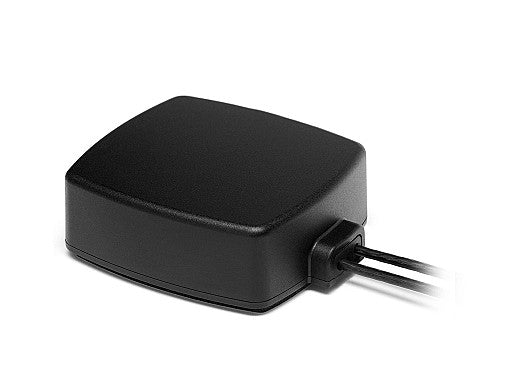

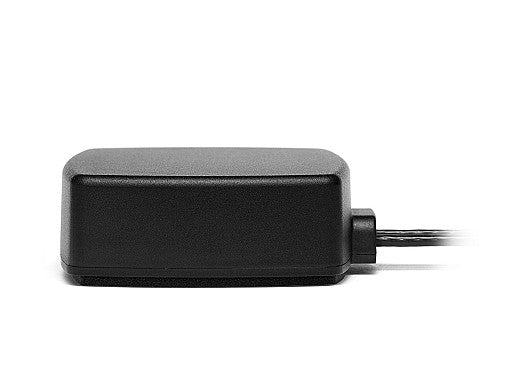

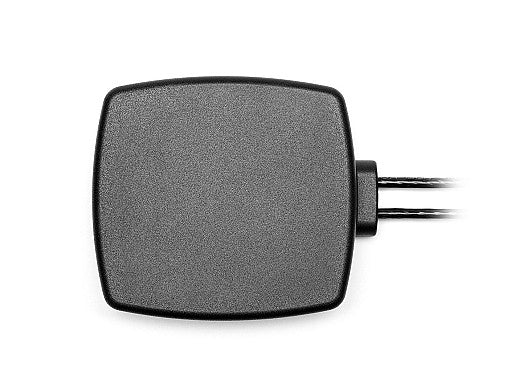

2J6924PA 4G/LTE, 3G, 2G MIMO adhesive mount Antenna Phoenix SMA-M 300cm IP67/IP69

This high-performance antenna is designed for demanding cellular applications, offering reliable connectivity for 4G LTE, 3G, and 2G networks. Its MIMO technology enables simultaneous data transmission and reception, ensuring high data throughput and stable connections. The compact, low-profile design and ground plane independence make it suitable for installation on both metal and non-metal surfaces. The robust IP67/IP69-rated housing provides excellent protection against dust, sand, and water, making it ideal for harsh environments. Typical use cases include HD voice and data, cellular communications, fleet management, public transportation, logistics, and telematics devices.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

With a compact design (89 × 76 × 30 mm), ground plane independence and high-grade adhesive mounting allow for easy installation on metal or non-metal surfaces, making this antenna an ideal solution for quick and easy installation on a wide range of surfaces. The housing is manufactured with IP67/IP69 rated ABS UV stable material resisting dust, sand, and water.
Both cables come with a standard SMA-male connector with 300cm long D302 cable that is tuned for maximum antenna performance. However, we have a large variety of alternative connectors and cables that can be customized for any specific application needs. Please contact one of our experts for more information or assistance with any antenna selection needs.
To support the health of our environment and a sustainable future, all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx, FirstNet
Mounting: Adhesive Mount
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.5:1, ~1.8:1, ~1.3:1
Efficiency (%): ~50.6, ~54.0, ~62.1
Peak Gain (dBi): ~4.6, ~5.6, ~5.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.3:1, ~1.9:1, ~1.2:1
Efficiency (%): ~50.6, ~50.7, ~61.2
Peak Gain (dBi): ~3.8, ~5.9, ~6.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
