2J6941PGFa 4G/LTE, GNSS adhesive mount Antenna 3-in-1 SMA-M 300cm

This low-profile 3-in-1 antenna delivers reliable 4G/LTE MIMO connectivity and high-precision GNSS navigation in a compact, ground plane independent design. Its adhesive mount allows for easy installation on both metal and non-metal surfaces, making it ideal for automotive, industrial, and IoT applications. The robust housing is UV-stable and rated IP67/IP69 for durability in harsh environments. The antenna supports a wide range of cellular bands and active GNSS standards, ensuring global coverage and precise positioning for demanding applications such as fleet management, smart metering, and public safety.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: D302 (LTE), D100 (GNSS)

Installation / Environmental

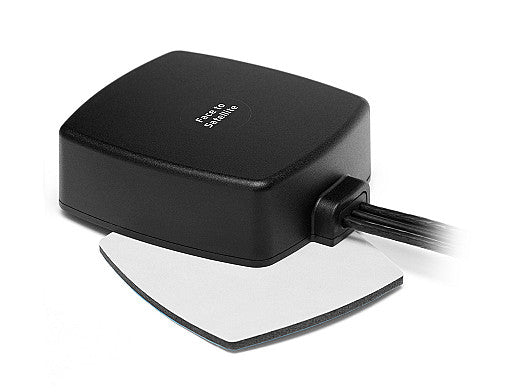

This ground plane independent antenna features a high-grade adhesive mounting allowing for easy installation on metal or non-metal surfaces with no need for grounding.

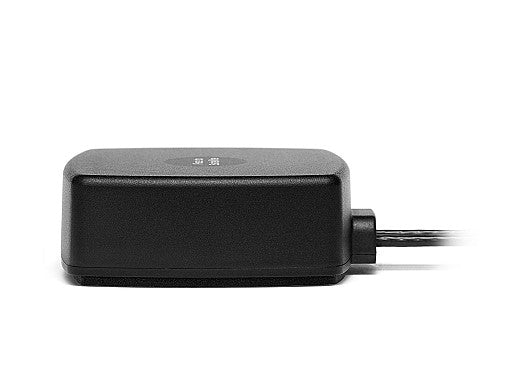

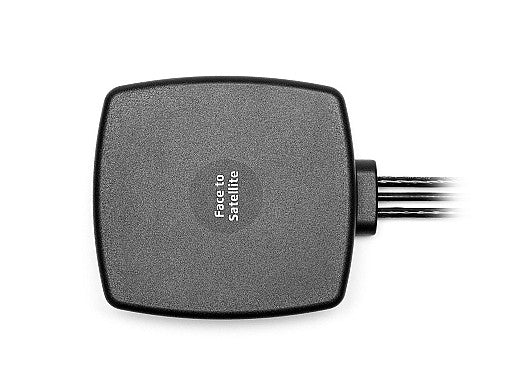

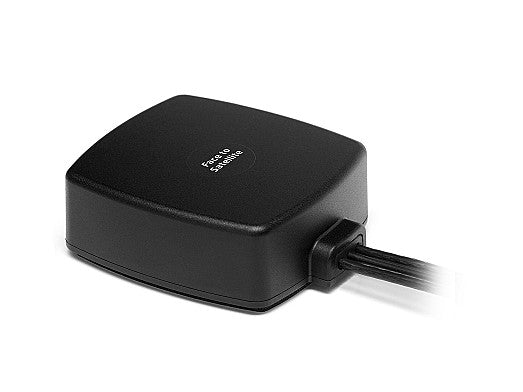

The low-profile box shaped housing measures 89 × 76 × 30 mm and is manufactured with an ASA UV stable material, known for its durability properties making it ideal for extreme environmental conditions. The housing is manufactured with IP67/IP69 rated ABS UV stable material resisting dust, sand, and water in addition offers durability for long term usage in outdoor or indoor applications.

For optimal performance, the 2J6941PGFa has been tuned with standard SMA-Male connector and 300 cm long D302 for LTE cellular and D100 for GNSS navigation cables. We offer a wide range of alternative connectors and cables for any customization needs. Please contact us for any request or antenna selection needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.9:1, ~1.3:1
Efficiency (%): ~50.7, ~50.8, ~60.4
Peak Gain (dBi): ~3.6, ~5.5, ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.8:1, ~1.3:1
Efficiency (%): ~50.3, ~55.3, ~61.5
Peak Gain (dBi): ~2.7, ~5.2, ~6.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
