2J6947Ba 4G/LTE, Wi-Fi 6E/7 screw mount Antenna 3-in-1 SMA-M 300cm IP67/IP69

This low-profile, ultra-wideband antenna delivers robust connectivity by combining dual 4G LTE MIMO and tri-band Wi-Fi 6E/7 support in a single, ground plane independent screw mount solution. Designed for high data throughput and reliable performance, it is ideal for IoT, automation, vehicle connectivity, smart home, and demanding industrial applications. The antenna is fully waterproof and dust-resistant, making it suitable for permanent installation on vehicles, buildings, and other external surfaces. Its anti-rotation mounting and rugged housing ensure long-term durability in harsh environments.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

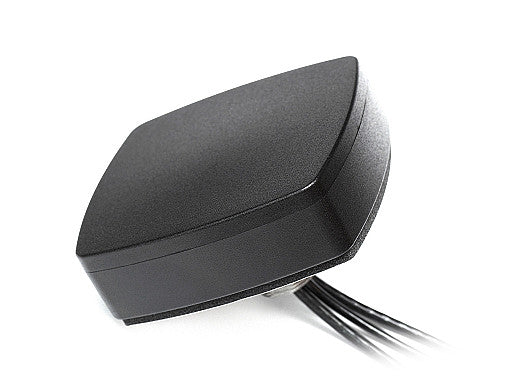

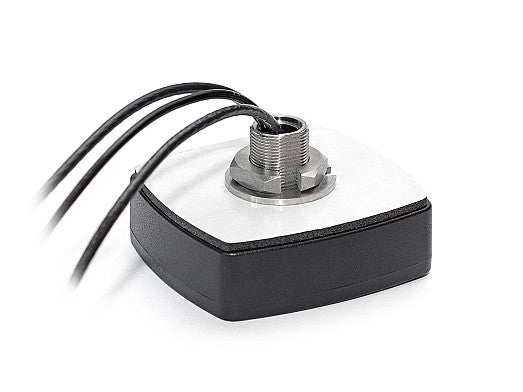

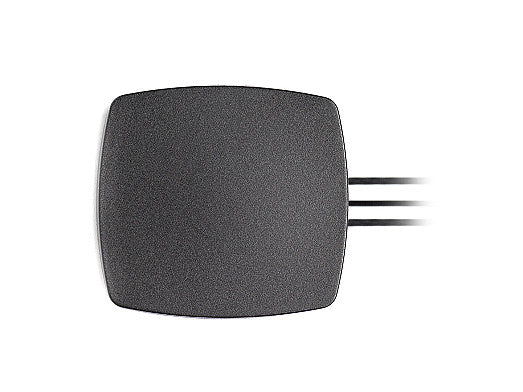

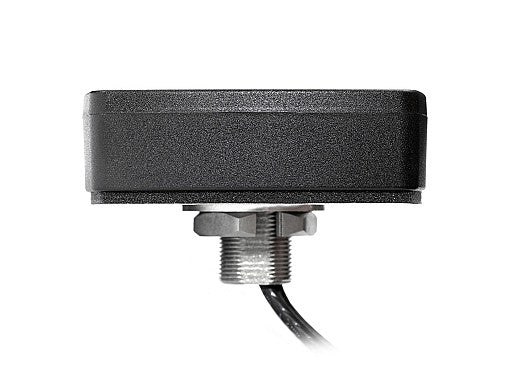

The low-profile, boxed shaped antenna housing (80 x 74 x 25.6 mm) is manufactured with PC/ASA material and available in white and black colors. Fully IP67 and IP69 certified, this antenna is waterproof and resistant to dust and other particles that could compromise antenna function. With an anti-rotation screw mount and ground plane independence, this antenna can be installed permanently on buildings, vehicles, and any other external surfaces without the need for grounding or free space.
The 2J6947Ba is tuned for optimal performance and comes with standard SMA-Male connector and with 300cm long D302 cables. Alternative connectors and cables are available for customization.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE (MIMO 1)

Standards: 2G, 3G, 4G
Frequency (MHz): 698-960, 1710-2170, 2500-2700
VSWR: ~2.0:1, ~2.4:1, ~1.2:1
Efficiency (%): ~42.5, ~25.1, ~30.0
Peak Gain (dBi): ~3.9, ~2.0, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE (MIMO 2)

Standards: 2G, 3G, 4G
Frequency (MHz): 698-960, 1710-2170, 2500-2700
VSWR: ~1.9:1, ~2.4:1, ~1.2:1
Efficiency (%): ~35.2, ~23.4, ~38.0
Peak Gain (dBi): ~3.8, ~2.1, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 2.4/5.0/6.0 GHz Tri-Band Wi-Fi 6E/7

Standards: Wi-Fi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~2.0:1, ~1.3:1, ~1.2:1
Efficiency (%): ~24.7, ~27.4, ~30.0
Peak Gain (dBi): ~-0.2, ~1.7, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
