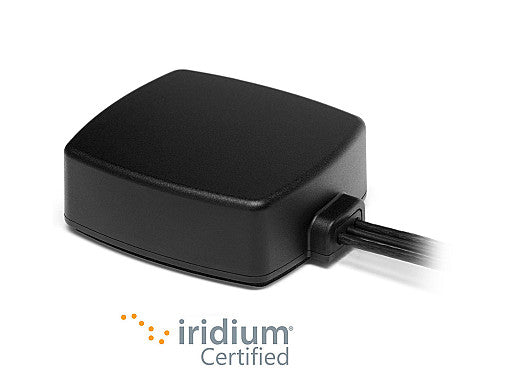

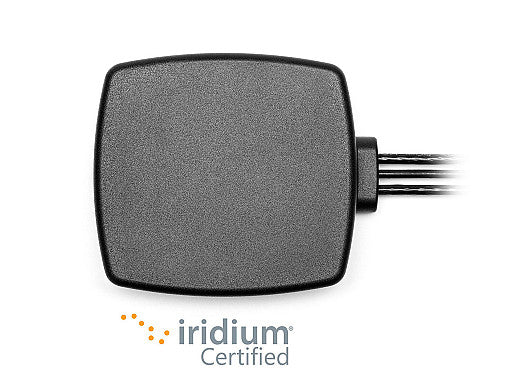

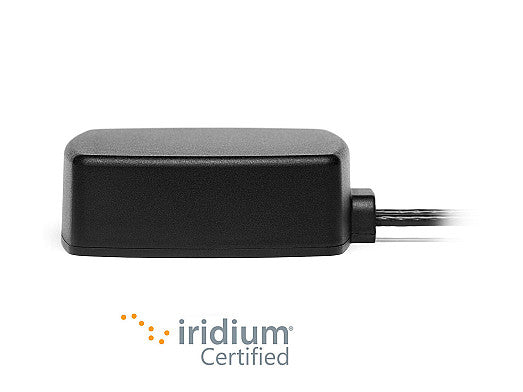

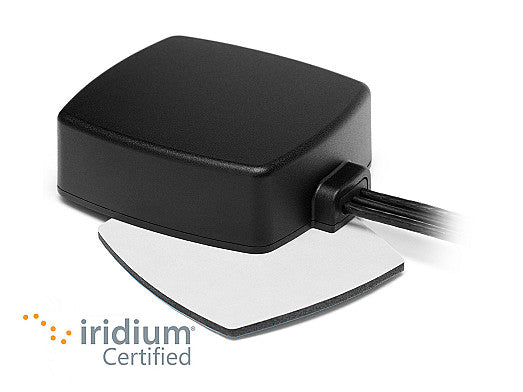

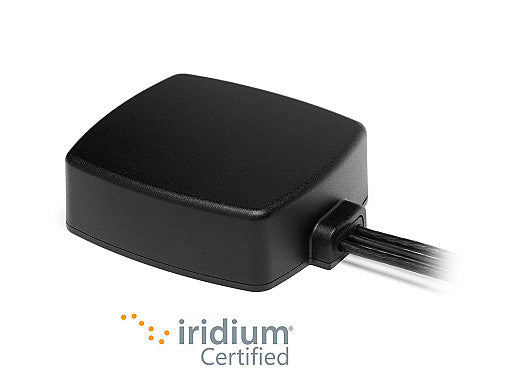

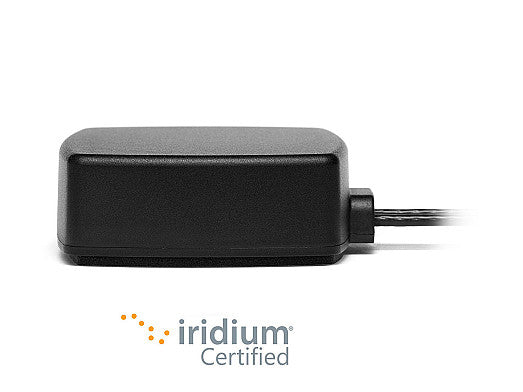

2J6975MPGF 5G, GNSS, Iridium magnetic/adhesive mount Antenna 3-in-1 SMA-M 300cm IP67/IP69

This low-profile, high-performance 3-in-1 antenna delivers reliable global connectivity across 5G NR, 4G LTE, 3G, 2G, GNSS (GPS, QZSS, Galileo, GLONASS), and Iridium satellite networks. Its ground plane independent design ensures consistent performance in a wide range of environments, making it ideal for tracking, mapping, industrial machinery, marine, automotive, and worldwide voice/data communications. The antenna features a robust ASA UV-stable housing for durability and is certified to IP67 and IP69 standards for protection against harsh conditions.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm

Installation / Environmental

For internal and external applications, the production material used is black/white ASA UV stable, protecting the antenna from temperatures between -40C and +85C. With ground plane independence, this antenna is easy to install with minimal location restrictions. All three cables on the 2J6975MPGF antenna have a SMA-Male standard connector and come with 300cm standard cable length. The 2J6975MPGF is fully customizable by offering other connector types, cable lengths and cable types. The 2J6975MPGF is manufactured with RoHS compliance and complete IP67 and IP69 Iridium certification.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.9, ~-9.2, ~-8.2, ~-7.5
VSWR: ~2.6:1, ~2.4:1, ~2.7:1, ~2.5:1
Efficiency (%): ~45.0, ~53.2, ~25.7, ~28.3
Peak Gain (dBi): ~2.3, ~5.1, ~2.6, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Radiation Pattern: Omni-Directional

Connection 2 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Peak Gain (dBic): ~5.2
Efficiency (%): ~68.1
Radiation Pattern: Hemispherical
Polarization: RHCP

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7V
