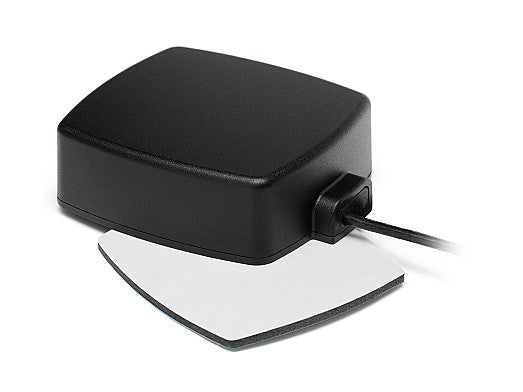

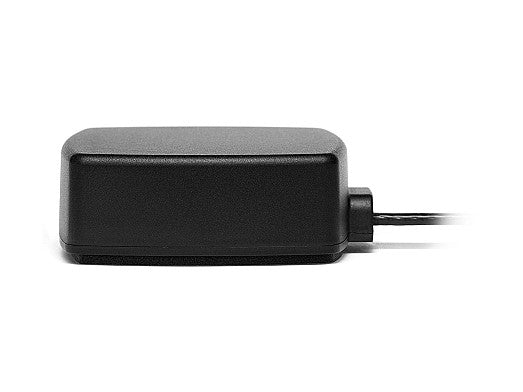

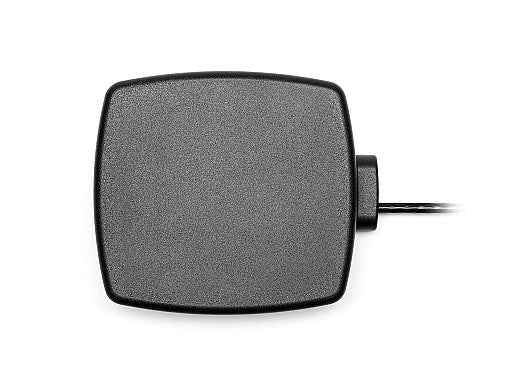

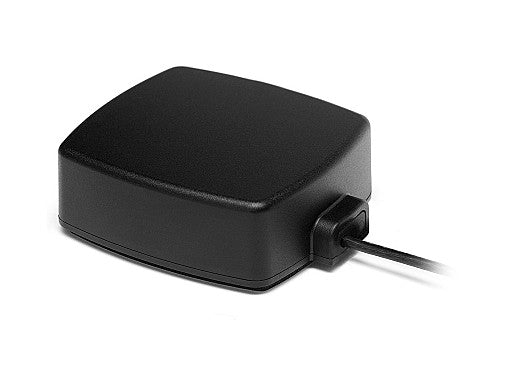

2J6983P 5G adhesive mount Antenna SMA-M 300cm IP67/IP69

This low-profile, ultra-wideband antenna is engineered for high-performance 5G NR and cellular connectivity across 5G, 4G LTE, 3G, and 2G networks. Its robust design ensures reliable operation in demanding environments, making it ideal for industrial, commercial, and residential applications that require high data throughput and consistent signal quality. The omni-directional radiation pattern provides 360-degree coverage, supporting seamless connectivity for mobile networks, telecommunication, smart cities, automation, and more.

• Ultra-wideband coverage from 617 to 5925 MHz
• High peak gain up to 6.3 dBi for 5G NR
• Ground plane independent for flexible installation
• Low-profile, durable ASA UV-stable housing
• Certified to IP67 and IP69 for superior environmental protection

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

The antenna is protected with a lightweight and durable layer of ASA UV stable material, which gives protection in outdoor or indoor temperatures as low as -40°C (-40°F) and as high as +85°C (+185°F). Total measurements for this compact antenna are only 89 × 76 × 30 mm and is easy to install thanks to its adhesive peel-n-stick mount for rough or smooth surface installations without the need for ground or free space. This antenna is IP67 and IP69 certified. 2J6983P is tuned for optimal antenna performance with a 300 cm long D302 cable and SMA-Male connection. We offer many alternative connectors and cables that meet any customization needs.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.0, ~-11.2, ~-7.1, ~-6.4
VSWR: ~3.1:1, ~2.1:1, ~3.1:1, ~3.0:1
Efficiency (%): ~50.2, ~56.3, ~30.4, ~25.1
Peak Gain (dBi): ~2.1, ~6.3, ~3.7, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
