2J6984BGFa 5G, GNSS screw mount Antenna Phoenix SMA-M 300cm IP67/IP69

This ultra-wideband 3-in-1 antenna delivers high-performance connectivity for demanding wireless applications. Featuring dual 5G NR MIMO and active GNSS support, it is ideal for industrial, commercial, and residential environments that require reliable data throughput and precise navigation. The low-profile, rugged housing ensures durability and protection against harsh conditions, making it suitable for automotive, transportation, asset tracking, and critical communications. The omni-directional design provides consistent signal strength, while the anti-rotation screw mount allows secure installation on various surfaces.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302/D100

Installation / Environmental

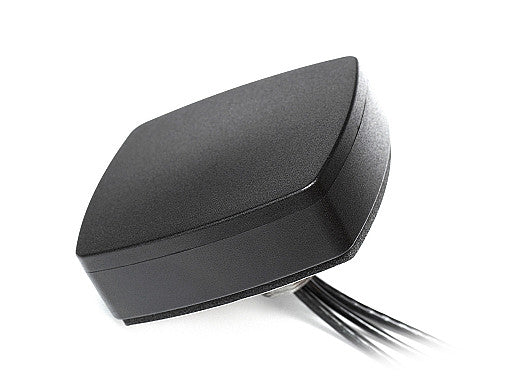

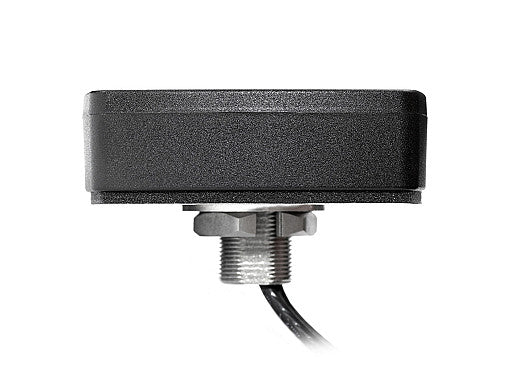

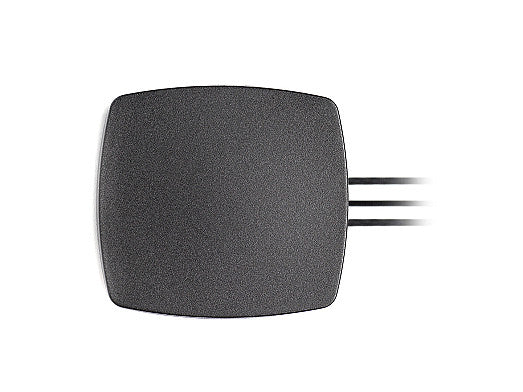

The low-profile box shape antenna housing measures 80 x 74 x 25.6 mm and is manufactured with highly durable ASA UV stable material (available in black and white). Fully IP67 and IP69 certified, give this antenna full protection to water and dust in the harshest environments. Designed with a heavy-duty anti-rotation screw mount, this antenna can be securely and easily installed on vertical or horizontal surfaces without the need for grounding. With an omni-directional radiation pattern, the antenna position should be aligned in 360-degree line of sight for optimal and uninterrupted signal strength.

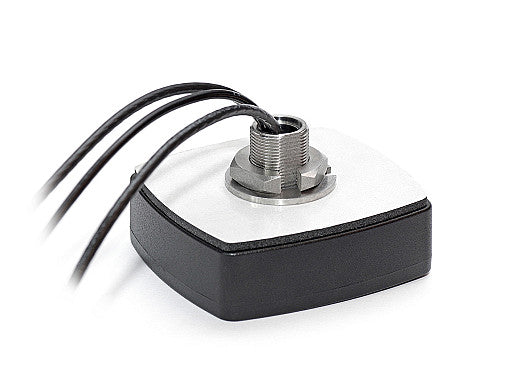

Each D302/D100 cable measures 300 cm in length, connects with a SMA-Male connector and feeds through the screw mounting for easy installation. This antenna is tuned for optimal performance and it is important for the correct cable type and length to avoid performance loss. With a wide range of customization needs, an expert team is available to assist with antenna selection and offers a large selection of alternative connectors and cables.
All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-11.2, ~-8.3, ~-7.1, ~-7.4
VSWR: ~2.0:1, ~2.6:1, ~3.2:1, ~2.6:1
Efficiency (%): ~46.2, ~50.5, ~32.5, ~30.5
Peak Gain (dBi): ~2.1, ~5.0, ~3.8, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-9.6, ~-8.2, ~-6.9, ~-7.0
VSWR: ~2.2:1, ~2.6:1, ~3.3:1, ~2.8:1
Efficiency (%): ~45.1, ~52.0, ~40.1, ~33.5
Peak Gain (dBi): ~3.2, ~5.0, ~5.1, ~4.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
