2J6985Ba 5G, Wi-Fi 6E/7, ISM screw mount Antenna 3-in-1 SMA-Male 300cm IP67/IP69

This ultra-wideband 3-in-1 antenna delivers high-performance connectivity for 5G, 4G/LTE, 3G, 2G cellular networks, Wi-Fi 6E/7, and ISM bands. Its low-profile, ground plane independent design is ideal for permanent outdoor installations in industrial, commercial, and residential environments. The robust housing is IP67 and IP69 certified for maximum durability, and the anti-rotation screw mount ensures secure attachment to a wide range of surfaces. Perfect for applications requiring reliable high-speed data, low latency, and consistent network availability, such as emergency response, IoT, asset tracking, automation, and multimedia streaming.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

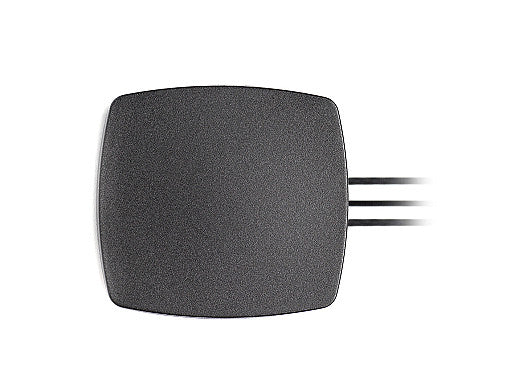

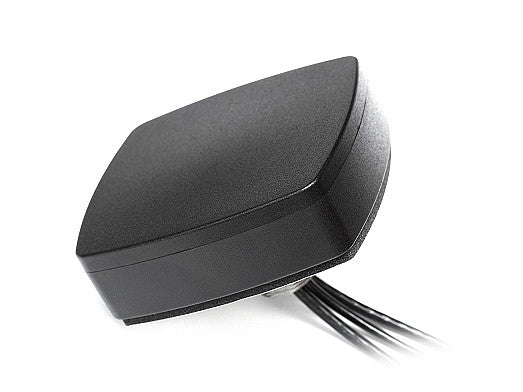

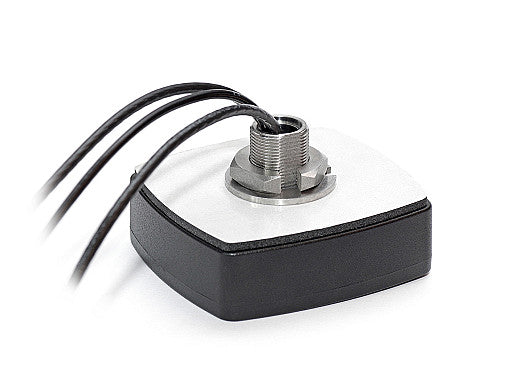

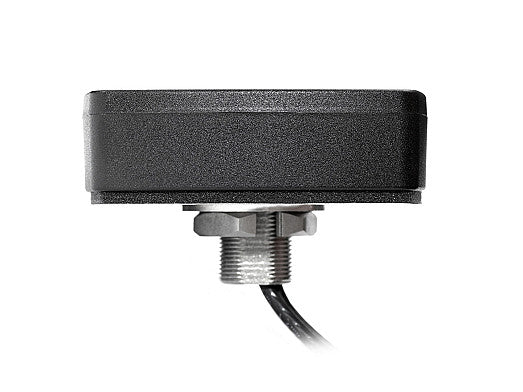

The low-profile 2J6985Ba measures 80 x 74 x 25.6 mm and is fully IP67 and IP69 certified and the perfect antenna solution for external permanent outdoor installations. The boxed shaped antenna housing is manufactured with durable PC/ASA material available in black and white housing colors. The 2J6985Ba is ground plane independent and designed with an anti-rotation screw mount allowing installation to a wide range of surfaces without the need for grounding or free space.  This antenna comes with standard SMA-Male (RP) connectors and 300 cm long D302. The cables and connectors are customizable on this antenna and our highly skilled engineers are ready to assist with any customization, installation, and antenna selection needs. All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Screw Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-15.5, ~-12.1, ~-12.3, ~-13.0
VSWR: ~1.5:1, ~1.8:1, ~1.9:1, ~1.7:1
Efficiency (%): ~35.3, ~27.1, ~23.6, ~22.3
Peak Gain (dBi): ~3.1, ~2.7, ~0.9, ~-0.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-16.8, ~-12.8, ~-13.4, ~-13.1
VSWR: ~1.4:1, ~1.7:1, ~1.7:1, ~1.7:1
Efficiency (%): ~34.1, ~27.3, ~20.0, ~22.0
Peak Gain (dBi): ~3.2, ~2.9, ~1.2, ~0.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~2.0:1, ~1.3:1, ~1.3:1
Efficiency (%): ~24.7, ~27.4, ~25.4
Peak Gain (dBi): ~-0.2, ~1.7, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
