2J6985Ma 5G, Wi-Fi 6E/7 magnetic mount Antenna Phoenix SMA-Male 300cm IP67/IP69

The Phoenix 3-in-1 ultra-wideband antenna delivers high-performance connectivity for demanding industrial, commercial, and residential applications. Supporting advanced 5G NR/4G LTE MIMO and Wi-Fi 6E/7 technologies, it ensures reliable, high-speed data throughput across 617 MHz to 7125 MHz bands. Its ground plane independent, low-profile design and magnetic mount make it ideal for versatile, permanent outdoor installations. The robust ASA housing is available in black or white and is fully IP67 and IP69 certified for maximum durability in harsh environments. This antenna is perfect for applications requiring continuous connectivity, high bandwidth, and efficient device operation, such as emergency response, IoT, asset tracking, automation, and multimedia streaming.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male (RP)
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

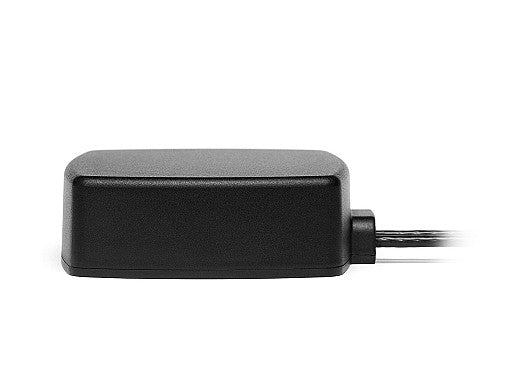

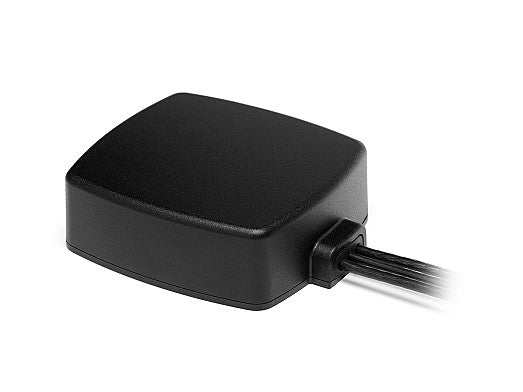

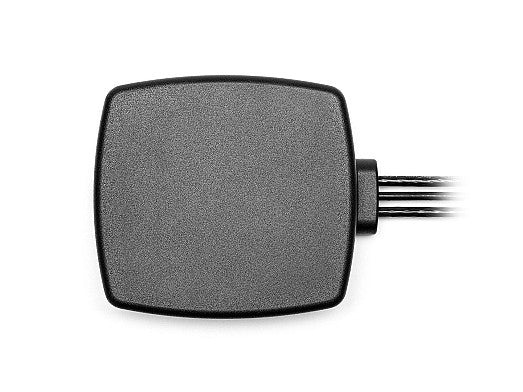

The low-profile 2J6985Ma measures 89 × 76 × 27 mm and is fully IP67 and IP69 certified and the perfect antenna solution for external permanent outdoor installations. The boxed shaped antenna housing is manufactured with durable ASA material available in black and white housing colors. The 2J6985Ma is ground plane independent and designed magnetic mount allowing installation to a wide range of surfaces without the need for grounding or free space. This antenna comes with standard SMA-Male (RP) connectors and 300 cm long D302. The cables and connectors are customizable on this antenna and our highly skilled engineers are ready to assist with any customization, installation, and antenna selection needs. All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Magnetic Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.0, ~-11.2, ~-7.1, ~-6.4
VSWR: ~3.1:1, ~2.1:1, ~3.1:1, ~3.0:1
Efficiency (%): ~50.2, ~56.3, ~30.4, ~25.1
Peak Gain (dBi): ~2.1, ~6.3, ~3.7, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.3, ~-10.8, ~-7.6, ~-8.4
VSWR: ~3.1:1, ~2.1:1, ~2.9:1, ~2.3:1
Efficiency (%): ~50.9, ~58.7, ~38.0, ~36.7
Peak Gain (dBi): ~1.6, ~6.3, ~5.1, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.3:1, ~1.7:1, ~1.4:1
Efficiency (%): ~38.4, ~25.6, ~28.0
Peak Gain (dBi): ~3.8, ~2.8, ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
