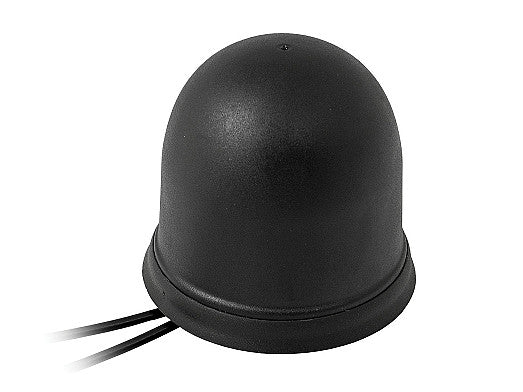

2J6A47B 4G/LTE, Wi-Fi, ISM screw mount Antenna IP67/IP69K

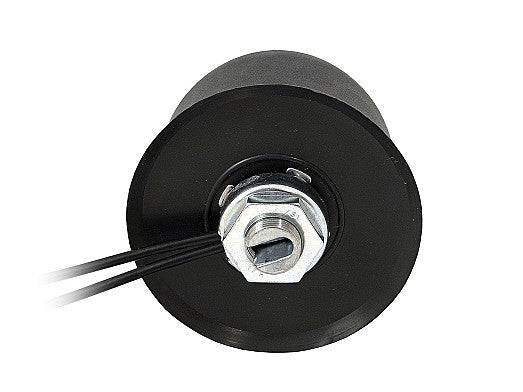

This robust combination antenna is designed for high-performance connectivity across 4G/LTE, Wi-Fi, and ISM bands. Its screw mount form factor and anti-rotation design ensure secure installation in demanding environments. The antenna is ideal for applications such as mobile and cellular networks, IoT, asset tracking, industrial monitoring, and smart city deployments. Heavy-duty construction and wideband support make it suitable for both automotive and industrial use, providing reliable wireless communication even in harsh conditions.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.5:1, ~1.5:1
Efficiency (%): ~52, ~62, ~50
Peak Gain (dBi): ~0.7, ~3.4, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.2:1, ~1.8:1
Efficiency (%): ~60.5, ~38.4
Peak Gain (dBi): ~5.0, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
