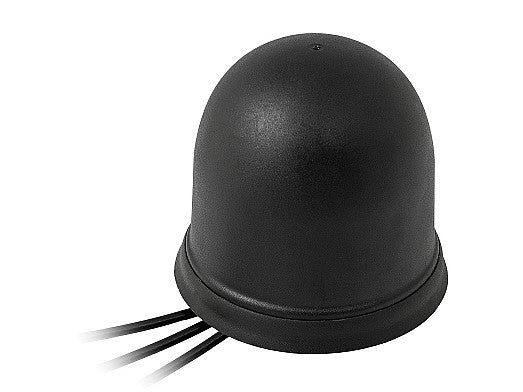

2J6A50BCF 4G/LTE, GNSS, Wi-Fi, ISM screw mount Antenna 3-in-1 IP67/IP69K

This high-performance combination antenna is designed for demanding applications requiring reliable connectivity across multiple technologies. Its robust construction and screw mount design make it ideal for use in harsh environments, providing stable operation for cellular, Wi-Fi, ISM, and GNSS systems. The antenna supports a wide range of frequencies, ensuring compatibility with global networks and satellite navigation systems. Its compact form factor and heavy-duty build are well-suited for automotive, industrial, and telematics installations.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/BEI/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External

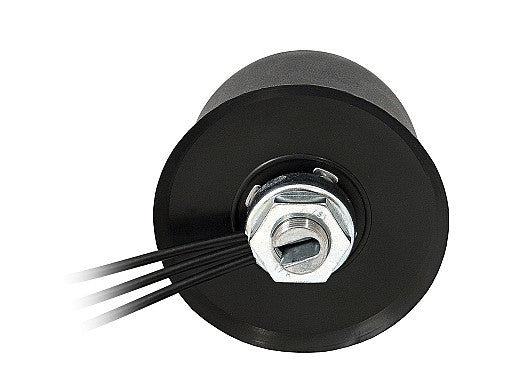

Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.5:1, ~1.5:1
Efficiency (%): ~52, ~62, ~50
Peak Gain (dBi): ~0.7, ~3.4, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.2:1, ~1.8:1
Efficiency (%): ~60.5, ~38.4
Peak Gain (dBi): ~5.0, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS/BeiDou

Standards: BeiDou, GPS, QZSS, Galileo, GLONASS
Frequency: 1561.098, 1575.42, 1598-1610 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
